The composite film tensile strength tester for aseptic packaging of liquid foods is used for the aseptic packaging of liquid foods made of plastics and plastics or plastics and aluminum foils, with or without lining, sterilized Packing bag. Tensile strength test according to GB/T13022-1991 regulations. Sample size (150 ± 2) mmX (15 ± 0.5) mm, test speed (100 ± 20) mm / min.
Features
Host LCD display data, results, ultra-precision 0.5
Adjustable range, system integration, simple replacement, change or test
Unique mechanical design, long stroke design, meet the needs of large deformation test
Professional software support, independent operation of each function, standard unit of measurement, no manual conversion
It can be used for testing such as definite stress, elastic modulus, stress and strain, and folding and analysis of grouped experimental curves.
Open data structure storage mode, Windows menu operation, easy to learn, easy to understand, easy to operate
Seven independent experimental projects such as stretching, peeling, tearing and heat sealing
Experimental data computer storage mode, multi-format shift query, convenient for quality status analysis

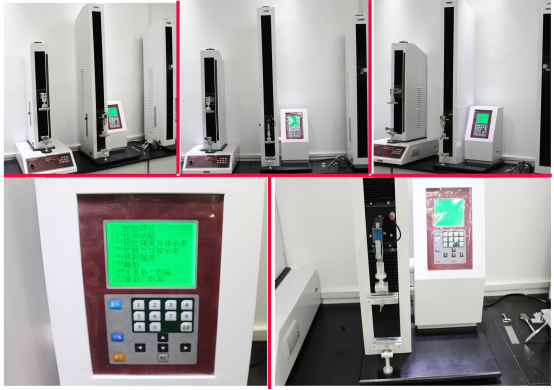

This machine adopts a mechatronics design and is mainly composed of a lateral force sensor, a microprocessor, a load driving mechanism, and a computer. The host LCD large-screen liquid crystal display, high-precision seven-speed test speed, plug-in connection between the various integrated components for easy maintenance. Modeling and painting both fully consider the principles of modern industrial design and ergonomics.
Function introductionHost liquid crystal and computer monitor full experimental test process, curve, microcomputer automatic transmission test set and test data. Each user user requests a standard report output. Through the superposition analysis of the group test curve, the quality control parameters can be accurately grasped. Multiple data query functions allow managers to clearly grasp the development trend of quality control. The specially designed software function enables the experimenter to quantitatively master the state parameters of key points during the application of experimental materials, and accurately perform process adjustment and production control.
Tensile test, tensile strength and elongation, tensile breaking force and elongation, heat seal strength, tear strength, 180 degree peel (including T type), and 90 degree peel.
Basic operation steps
Power on - select the test item - set the test parameters - start the test,
Standby state - clamp sample - start test - end of test,
Auto-return—send experimental data—display results and curves—experimental results are stored permanently—output experimental results and curves as needed.
Technical indicators
Specification: 500N 50N (optional one)
Accuracy: 0.5
Test speed: 50 100 150 200 250 300 500mm/min
Test width: 30 mm (standard fixture)
50mm (optional clamp)
Travel: 1000mm
Mainframe dimensions: 450mm (L) × 450mm (B) × 1410mm (H)
Source: AC 220V 50Hz
Host net weight: 68kg
ConfigurationStandard configuration: host, universal fixture, professional software, communication cable
Options: standard pressure roller, test plate, sampling knife, floating roller clamp, low speed unwinding device, non-standard fixture
