I do not know if you have noticed that most of the mainstream computer hardware and installed popular red, black color, green theme is relatively small, why do people from China have not liked green since ancient times, a simple popular science, because green is a mixture of yellow and blue In fact, it belongs to color, the color that the ancients regard as impure, it is the color used by the scumbags, not to mention the green hat that the male compatriots smelled, so try to avoid using it, although there are not so many rules in ancient times today, But the color preferences are always there in the subconscious. In fact, green has the life, nature, and equality of good morals. Since so many installations take the red and black routes, today I will come to a special point, all-green style installation.
Well, I can't edit it anymore... I originally intended to summon a set of RGB-capable hardware to summon the dragon. We have created an original box with the MSI GTX1080 DUKE RGB graphics card, the Moonlight Box X chassis, and the Tt Riing RGB fan. , But a bit of accident happened. The newly started RGB motherboard and some titanium 800 power were burned at the same time. In addition, the backlight memory did not find RGB changeable color, so change the plan, first install a green-black style computer, and later Upgrade a set of truly full RGB.
The value of the black and green computer is also good, and most of the backlight in this set can also change color.

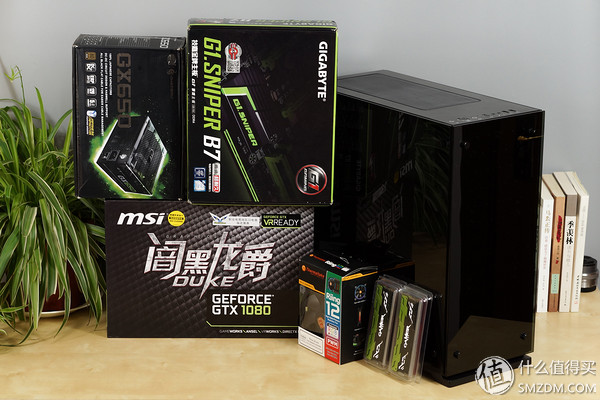

Here's a description of the various accessories that will be sent to the family.
CPU Intel i5 6600K
Motherboard Gigabyte G1.Sniper B7
Graphics MSI GTX1080 8G DUKE
Memory GALAXY GAMER DDR4 2400 8G×2
Hard Disk Seagate SSHD 500G
Chassis Patriot Moonlight Box X
Power Cooler Extreme GX650
Heat chaser PH-TC12LS, TT Riing 12cm RGB×3
First of all, the sunscreen Gigabyte G1.Sniper B7 motherboard, choose it because the backlight played really slip.

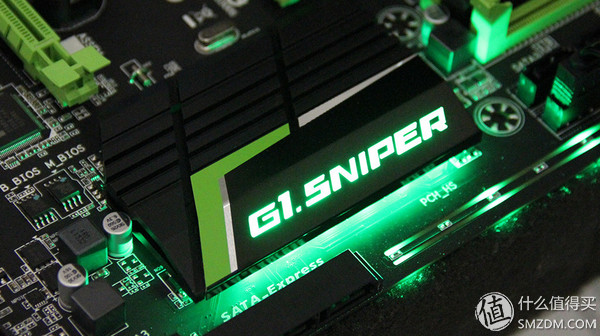

The motherboard has 3 backlight designs. In addition to the audio circuit cutting the PCB and the two LED strips on the side of the memory, the new G1.Sniper adds a translucent design to the PCH heat sink, the entire logo can be lit, and can be set off, Constant light, breathing, music mode, Gigabyte says playing the motherboard backlight we are serious.

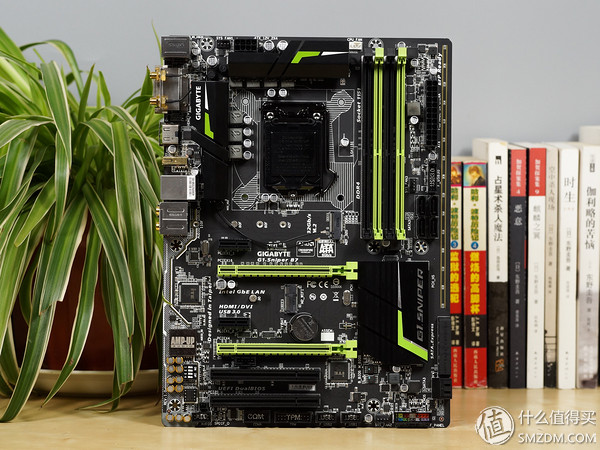

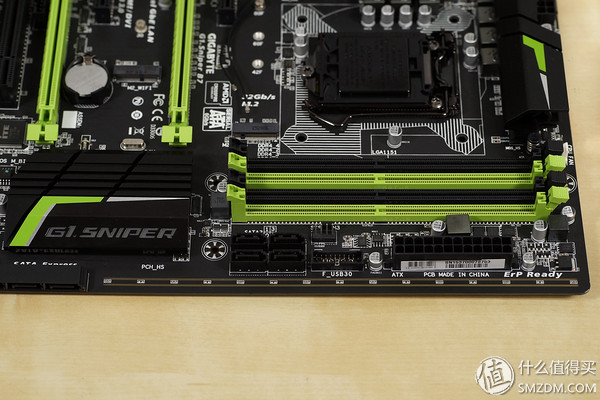

Gigabyte G1.Sniper B7 continues the iconic green jungle theme. The main board green I think of this series, X? Light board can see?
Standard ATX board, four DDR4, two PCI-E card slots, six SATA3.0 plus one SATA-E, and two M.2 interfaces, except the B150 chipset limited overclocking and SLI dual card, The main function and scalability of the motherboard are all.

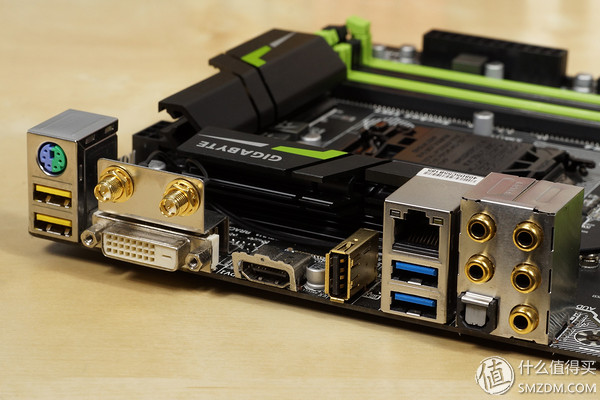

Motherboard I/O interface, PS/2 Keyboard+5×USB, one of which is gold-plated enhanced magic tone USB interface, video interface is DVI+HDMI, audio jack is also gold-plated enhanced processing, in addition, a WiFi antenna bracket is reserved.

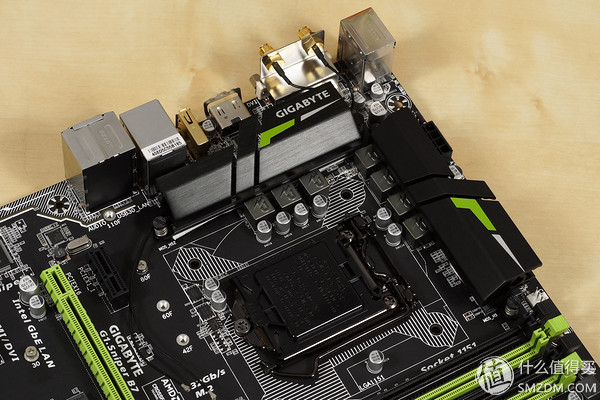

7-phase CPU power supply, Gigabyte custom materials using lightning inductors, all solid capacitors, processor socket through black nickel, where the radiator shape and materials are very seductive, if sold too bad I use Go on.
The memory slot is a unilateral snap, supporting up to 64G capacity, but unfortunately the frequency is only 2133MHz frequency (B150 are the same), the USB socket and SATA are under the upright design, in order to avoid blocking the LED lights.

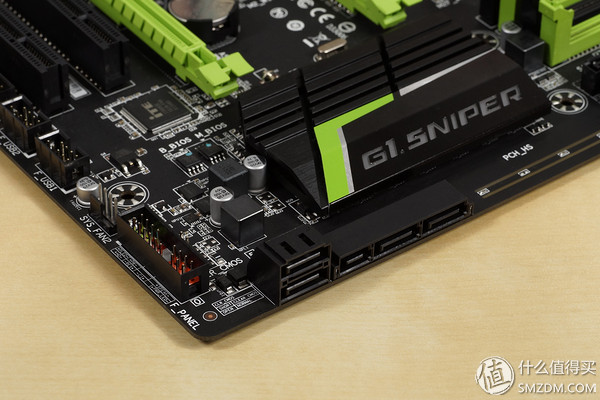

The SATA hard disk interfaces are distributed in two places. There are four SATA3.0 on the side of the memory and two SATA3.0 and one SATA-E interface on the side of the heat sink. Note that the two SATA in the SATA-E cannot be used as SATA alone. Use, did not pay attention to, but also think there is a problem with the new motherboard interface.

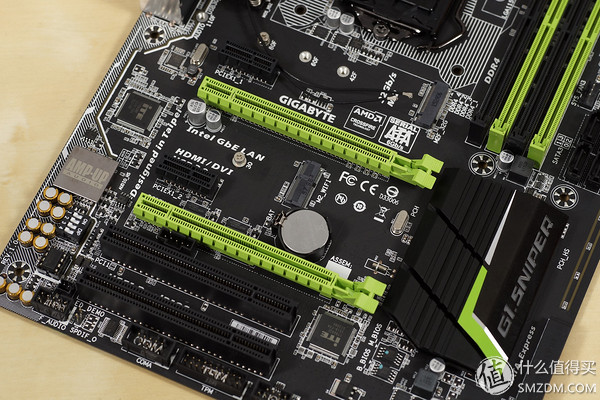

There are two graphics card slots, which are PCI-E x16 and x4 bandwidths. They do not support Nvidia SLI but can be used to group AMD CF dual cards. In addition, there are two PCI-E x1 slots and two old PCI device slots. To be honest, how many dual graphics cards can be used, but there are no two video card slots, and I would think that the board has a low face value.

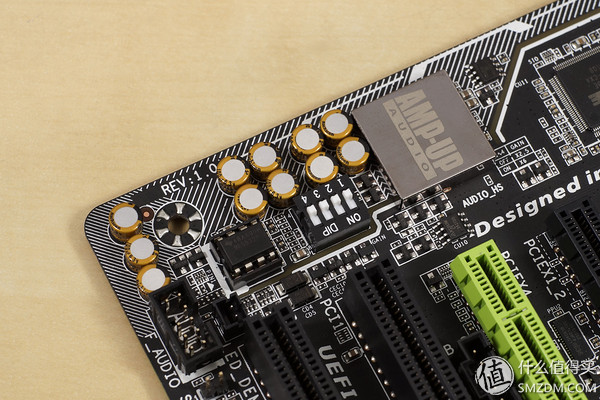

Gigabyte's magic sound system, Realtek's most advanced ALC1150 integrated sound card chip, metal shield, Nyquicon audio professional capacitor, independent audio PCB cutting circuit, gain mode switch, replaceable huaneng chip, audio has always been the strength of GIGABYTE, Unfortunately, my fungus has no pursuit of sound quality, and the main thing I value is the backlighting and sales of this board.
Black Dragon Jr. card, this card was previously shared and disassembled separately. See

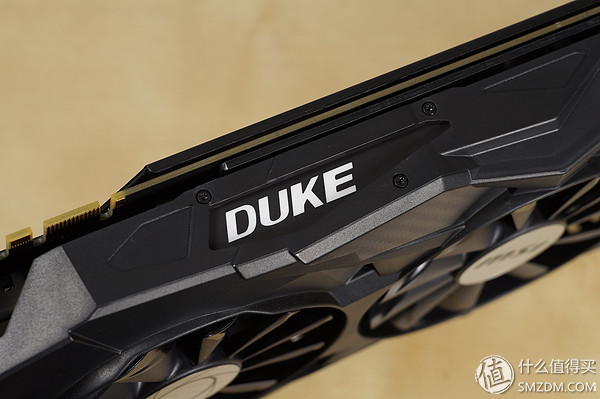

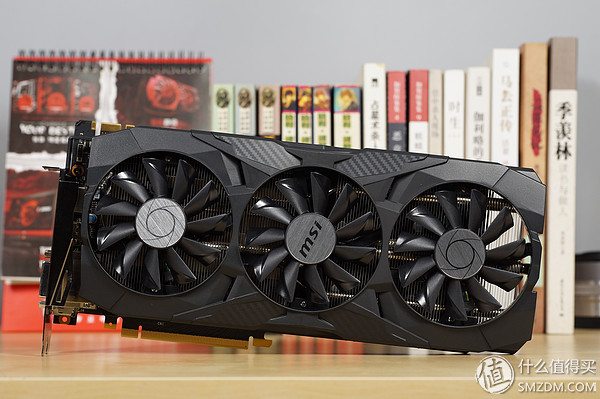

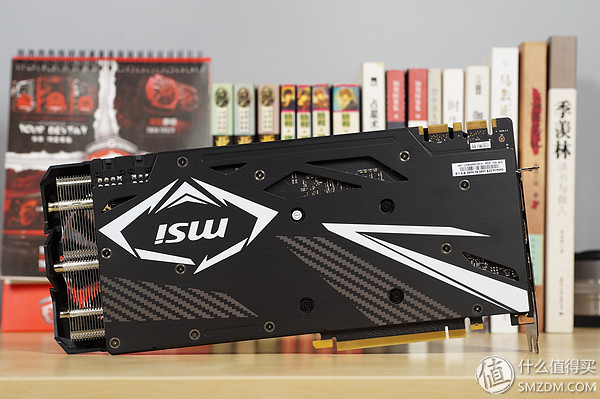

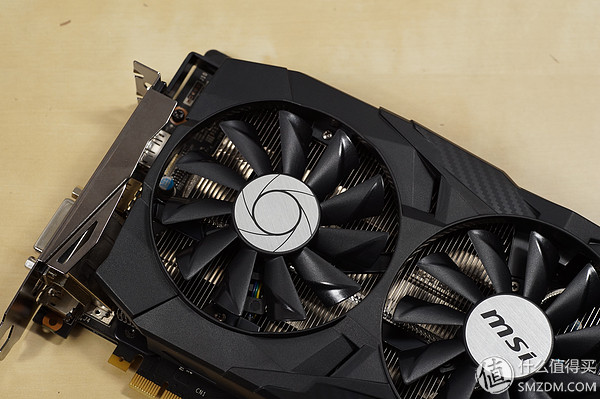

MSI GTX1080 DUKE is an all black color graphics card, carbon fiber texture embellishment, using TriFrozr three fan design, quite a shadow of Lightning lightning.
The top is upgraded to RGB LED belief backlight, supports 16.8 million arbitrary color changes, and all hardware can match colors.

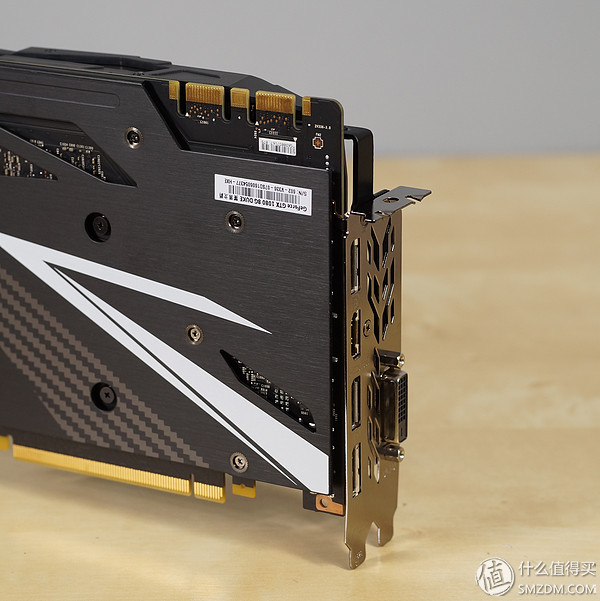

This video card is very large and needs to pay attention to the compatibility of the chassis. The total length is 312mm and the shoulder-type PCB is used.

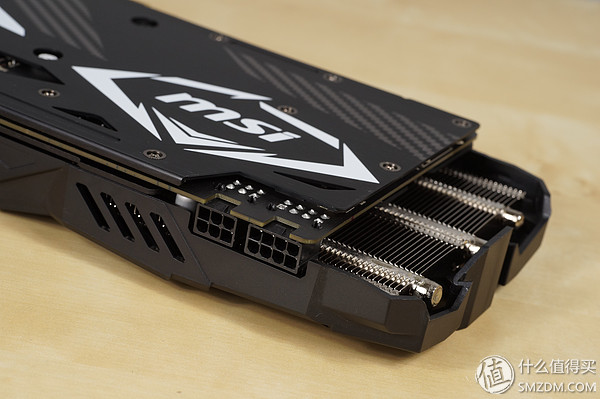

8pin + 6pin graphics card power supply interface.
The fan supports intelligent start-stop technology at 60°C.

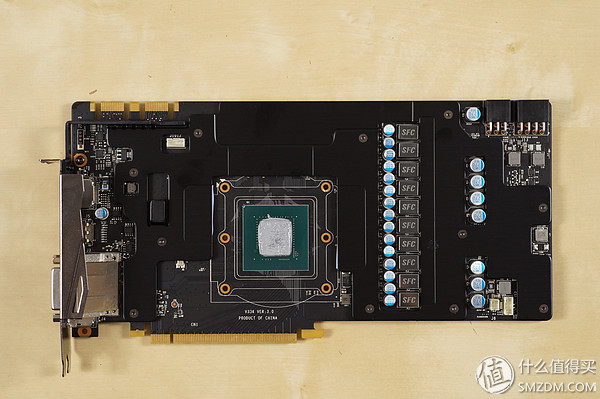

Full PCB footprint, 8+2 phase power supply.

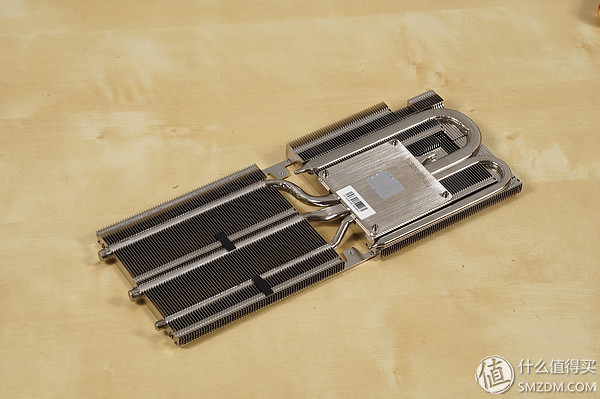

DUKE's heat sink, a combination of three heat pipes (2 pieces of 8mm + 1 pieces of 6mm), a large-area copper bottom, and two sections of heat-dissipation fins have all been beautifully plated with nickel, and all are connected by a welding process.

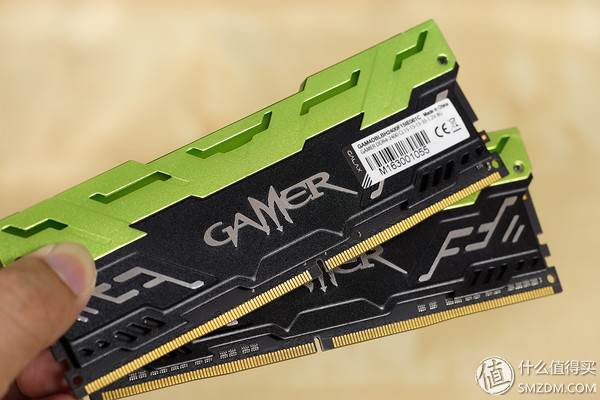

The appearance of the green and the memory of the backlight were found in a circle. It seems that only the two series of GALAXY GAMER and U-CORE have the main green product, and finally, the GALAXY GAMER with the stronger metal texture was selected.

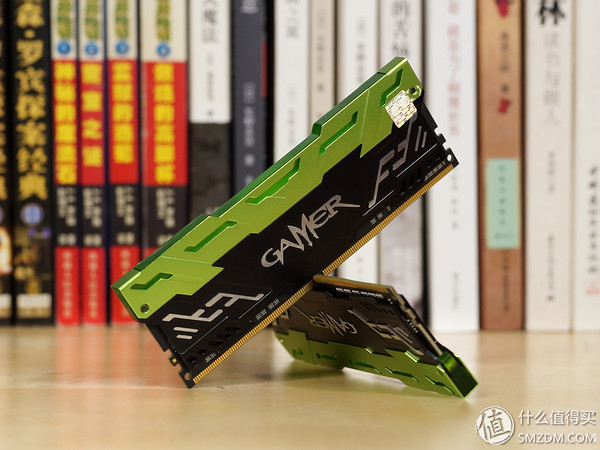

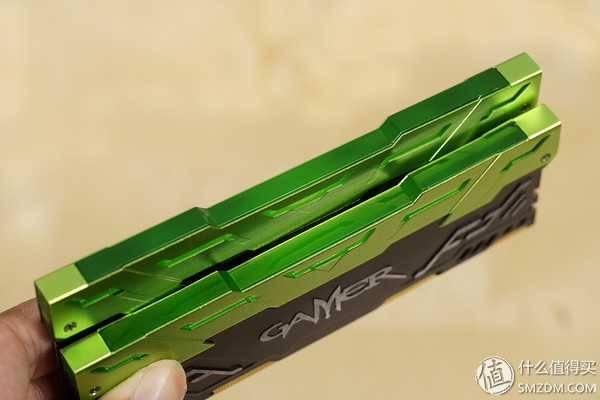

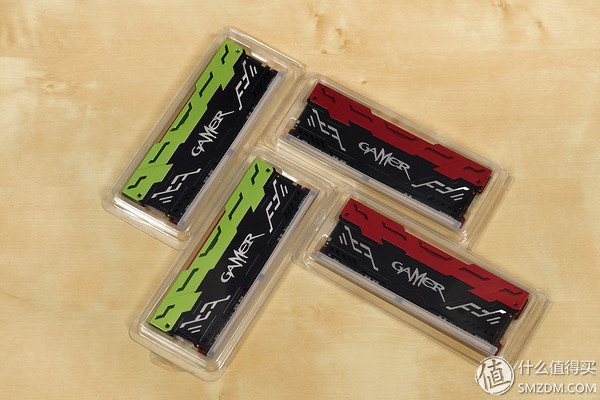

GALAXY GAMER DDR4 other not to say, the color and backlight design is very good, there are red, green, blue 3 options, it is worth mentioning that there is a separate lighting kit, different color modules can be converted to each other, in a sense seems to be RGB, anyway, the price of memory is cheaper to buy a set of red.
The heat sink is divided into two parts, the anodizing and backlight modules on the top, and the memory heat sink on the bottom. There are many decorative patterns on the whole.
The entire top and side lines are light transmissive.
The memory parameters are quite satisfactory, with a single 8G, 2400MHz frequency, CL15 timing, and a 1.2V voltage.

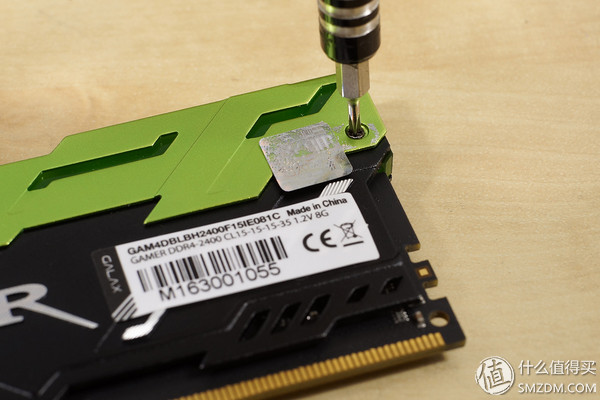

GALAXY GAMER memory is very good demolition, unlike the Kingston HyperX fishbone I had previously dismantled the heat, remove the laser anti-counterfeit labels, and then remove the 4 screws to get it.

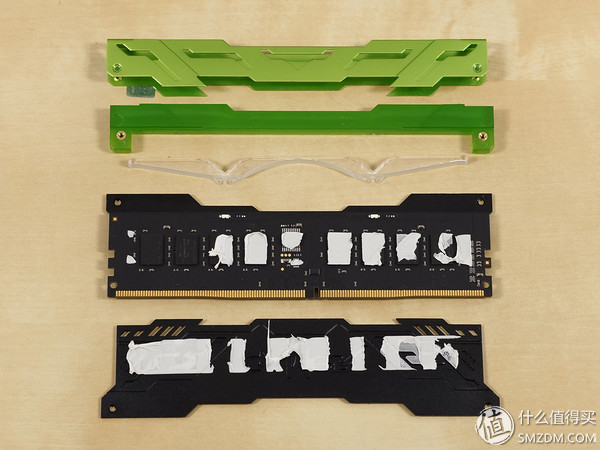

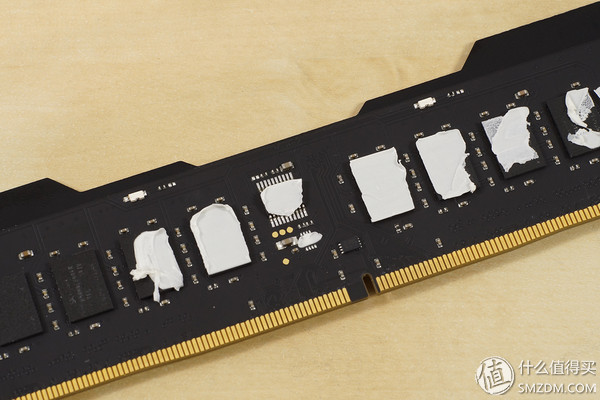

There are a lot of components that are removed, and there are two LED translucent strips. Changing the green module can change the color of the backlight. The black heat sink and memory particles are stuck on the thermal paste, so don't get it out.
The LED originally had only two, but do not worry about its brightness, in fact the brightness is not weak.

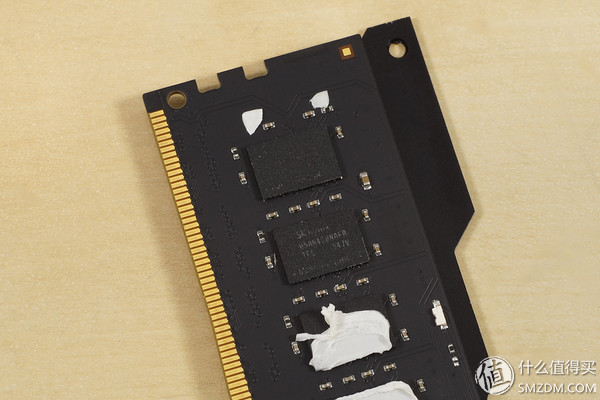

8-layer PCB, using Hynix AFR memory particles, the specific model H5AN4G8NAFR, seen in other brands 3000MHz slivers, so there is a certain amount of overclocking space can be tapped.
Patriot Moonlight X box also made a detailed out of the box introduced
However, there is no installed capacity. This article can actually be said to be an installation follow-up.

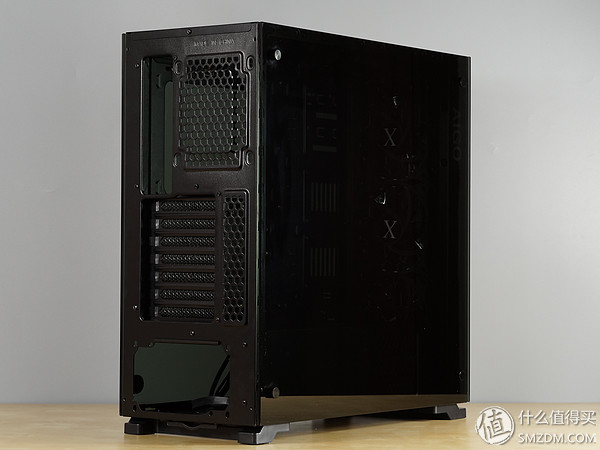

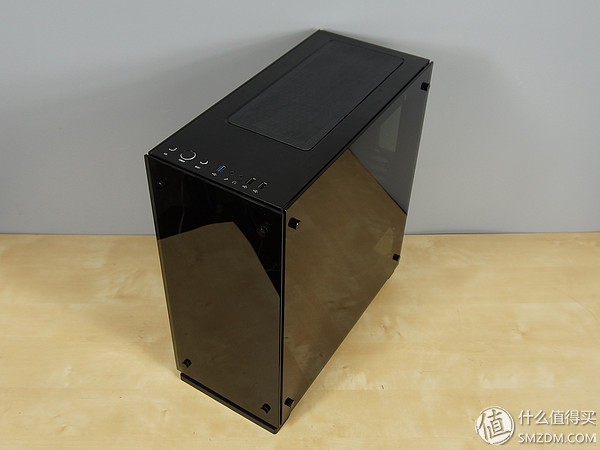

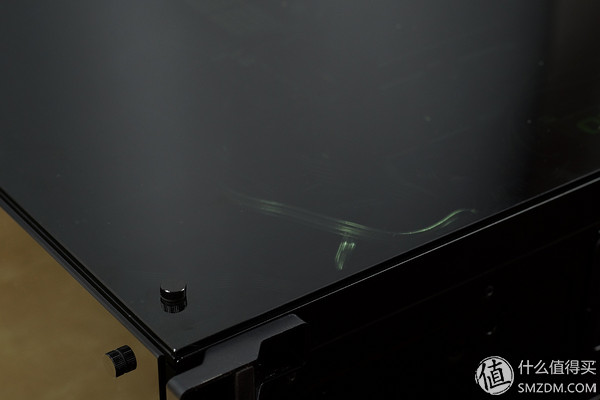

Three sides 4mm tempered glass, very simple, the advantages of glass Biekli side through the texture of the panel is much stronger, it is not easy to leave scratches.

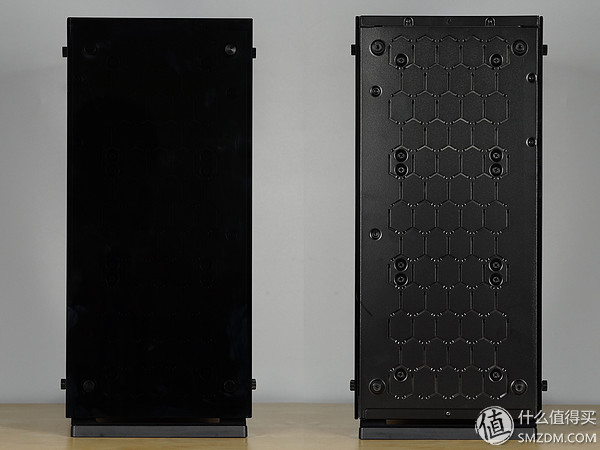

Front face glass is detachable, there are a lot of hexagonal honeycomb openings inside, not only can heat into the wind, but also has a very good light transmission effect.

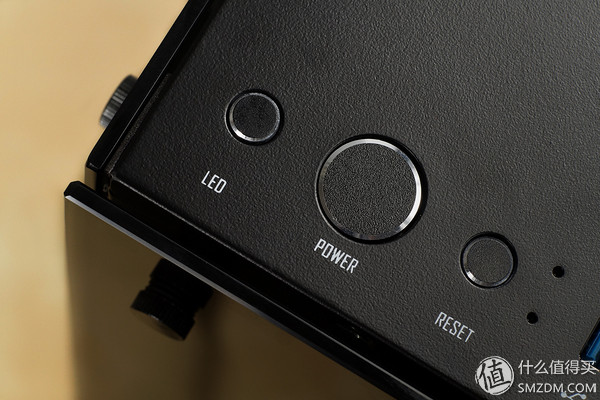

Chassis I/O, LED buttons can switch chassis 7 color backlight and 2 special backlight modes.

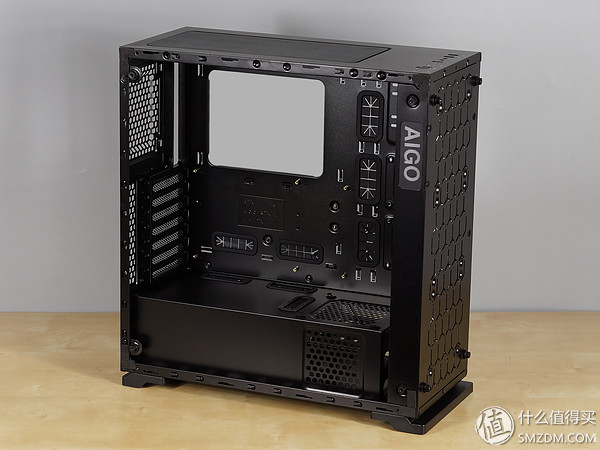

The interior is now a popular split-type structure, cut off the hard disk brackets used, and increase the power supply cover hidden design.

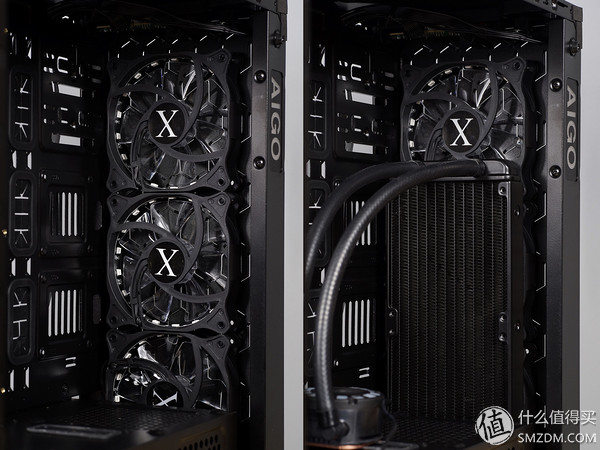

The front can be fitted with a water-cooled 240mm specification.

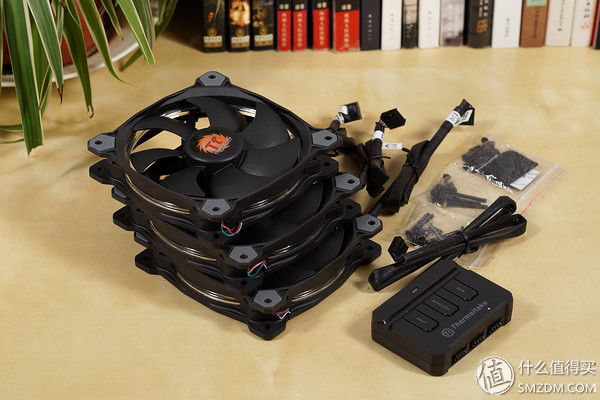

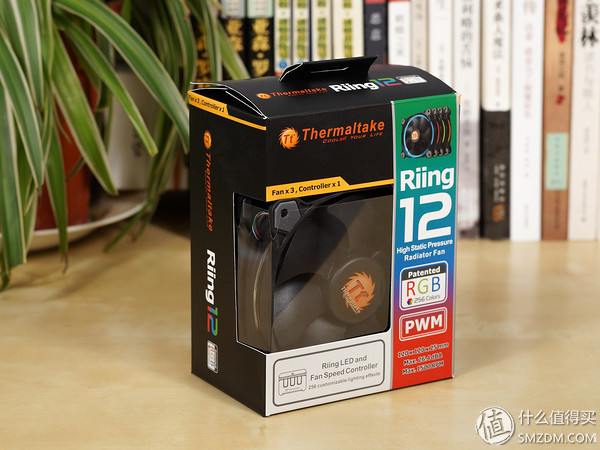

A variety of cool MOD host Tp Riing 12cm RGB fan with a surprisingly high image rate, want to play this RGB fan for a long time, this time finally on.
However, it is not as perfect as it used to be. It is not that its lighting effect is not good, but the RGB setting of this product is somewhat unhappy. The first is actually only four colors of red, blue, white, and green, so-called RGB. Is a colorful dynamic transition mode, the color type is a bit less, the second Tt Riing adjustment backlight must have a dedicated fan controller, not only take up space, need to be placed there, and must be manually pressed inside the chassis, this RGB is really inconvenient.

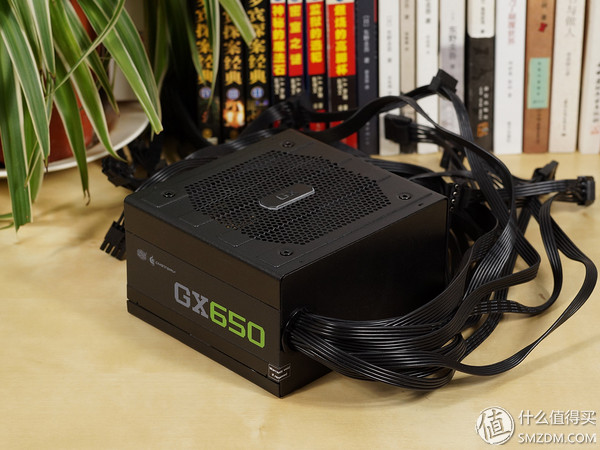

Cool cold GX650 power is obtained before the smzdm public test, green stickers in line with the green and black theme can be used for one use.

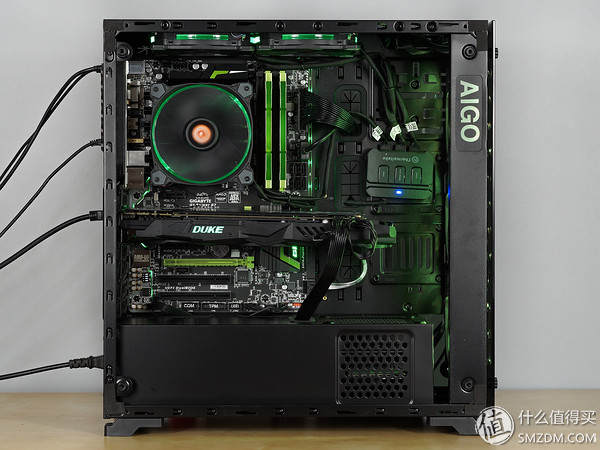

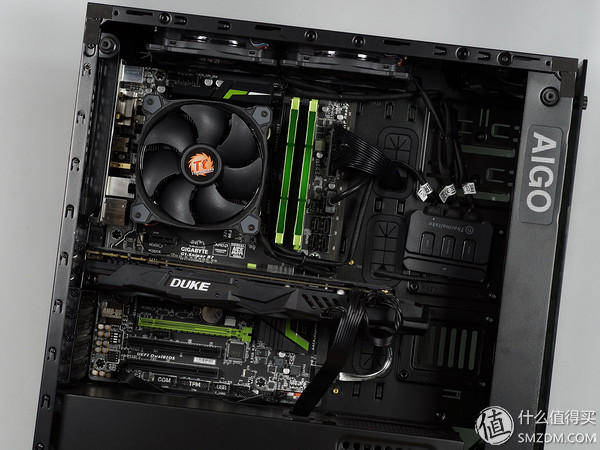

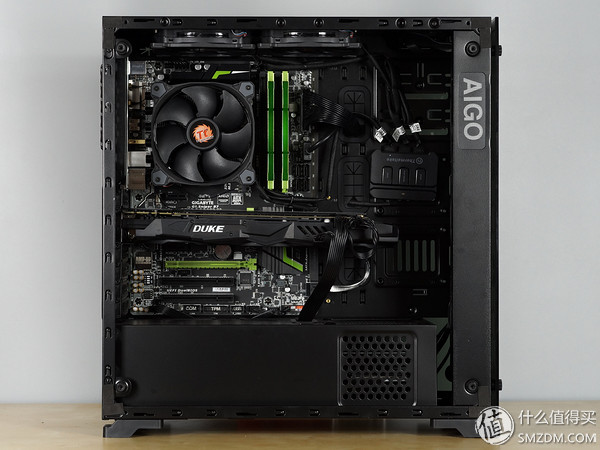

The CPU, radiator, and hard disk are not separately described in the old platform. Let's look at the final installation diagram.

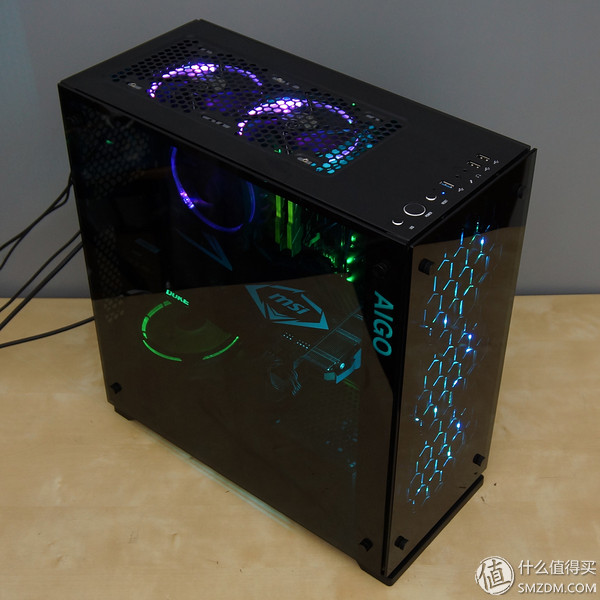

Well, the front is simple and clean, and he also feels very satisfied. In order to place the Tt Riing fan controller in place, he is really struggling to find a perfect solution (not taped on).

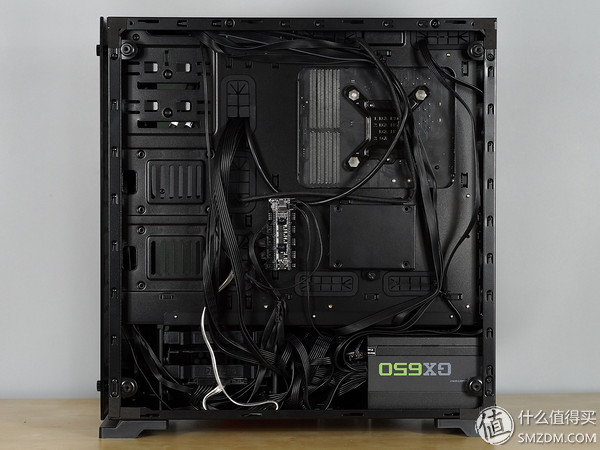

On the back, everyone looks like it, do not Tucao, the installation process is easier than you think, probably because there is not a large volume of air-cooled or one water-cooled, but a smaller ITX radiator, in addition to the back line I always lazy not how Organized, so neither the compatibility nor the alignment has caused me trouble.

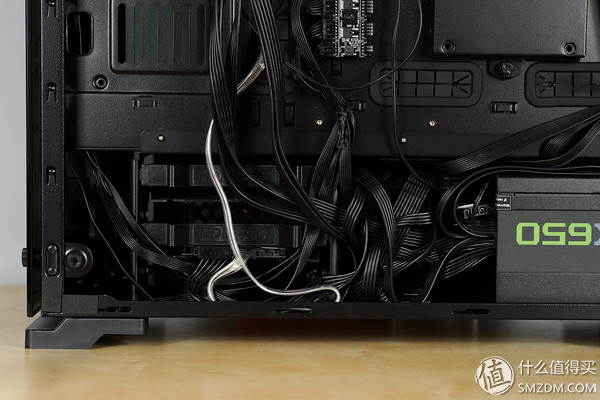

Thanks to the full flat design of the power cable, the original fear of chassis 20mm backplane space is not enough, in fact, no effect, the excess power cable can be hidden inside the power enclosure, and 24pin, 6 + 2pin and other wire are not to tempered glass Too much pressure.

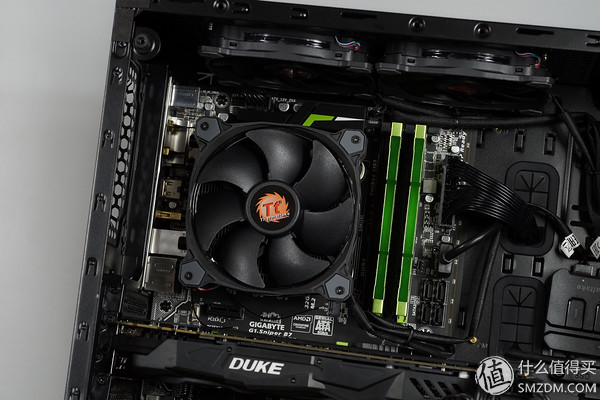

The space at the top of the Moonlight Box X chassis is a bit tight, and it is just enough to install a fan with a thickness of 25mm. Adding a water-cooled row is not enough. Water cooling can only be put on the front side of the chassis.
The CPU 4+4pin cable and CPU fan cable should be pre-installed before installing the heat sink, otherwise you may have to re-enter if your hand does not reach.

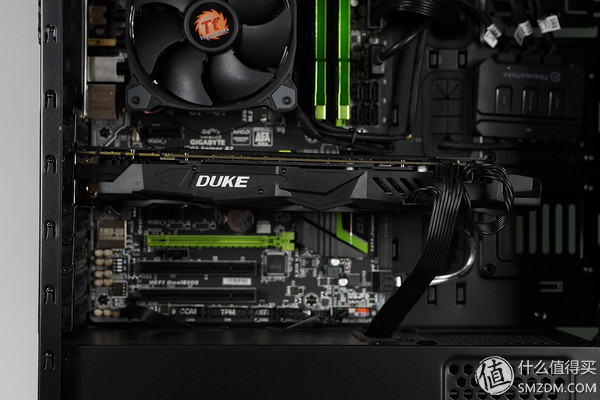

The space near the graphics card is very spacious, without the hard disk rack to hinder, the chassis closer to the cold air.
It can be seen that the MSI GTX1080 DUKE graphics card is heavy and the right side is obviously sinking. The next time you have to buy a high-tech graphics card bracket to help out.

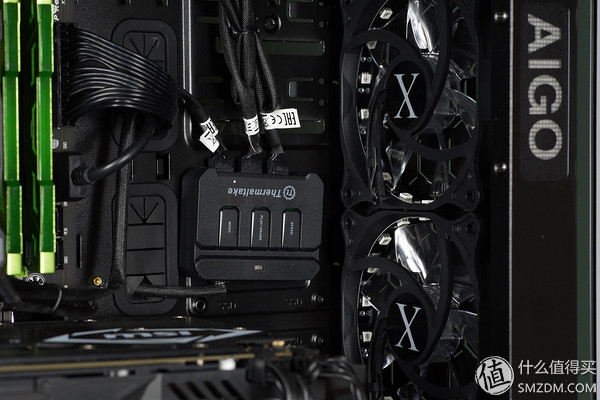

The TT Riing RGB fan controller is very clever and can be mounted on the chassis SSD mounting position by removing the two diagonally mounted screws of the fan controller and then locating the corresponding hole in the back of the chassis.

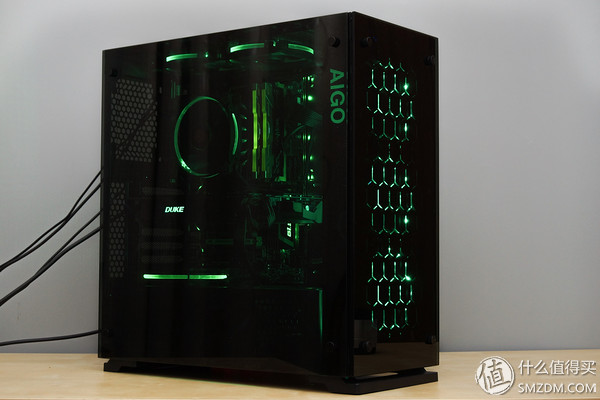

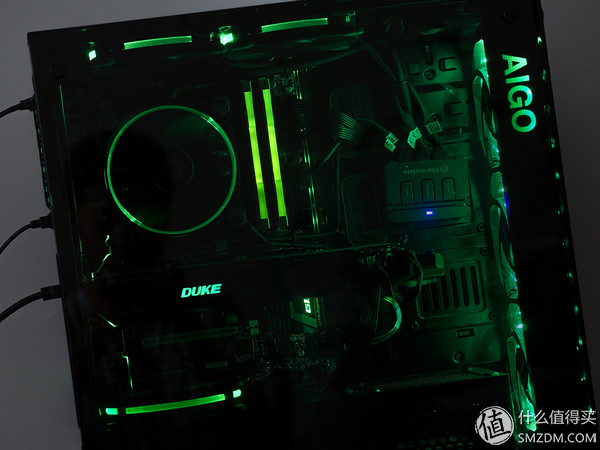

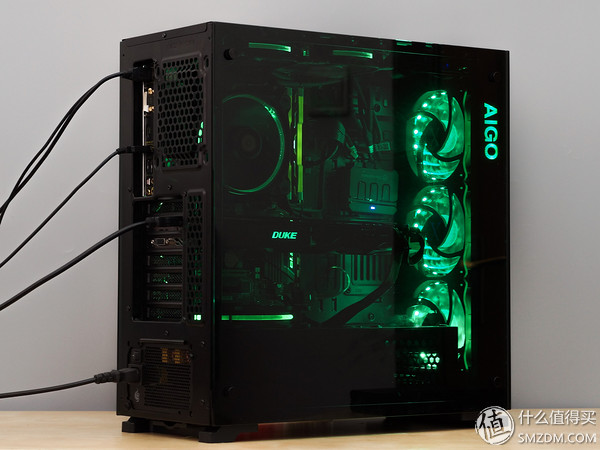

Power on, found that GALAXY GAMER memory green light stripped out of the mirror, Gigabyte motherboard backlight due to hinder a little light effect.

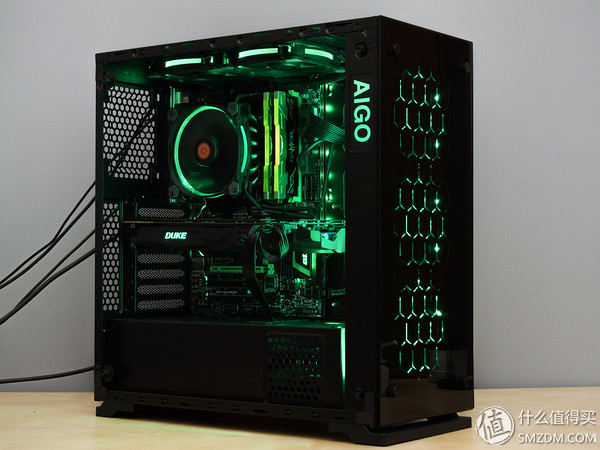

Finally, a green LED fan is added to the left side of the power supply cover to balance the backlight distribution and the overall effect is better. Note that this fan has no actual heat dissipation effect and is purely for the purpose of enhancing the value of the color.

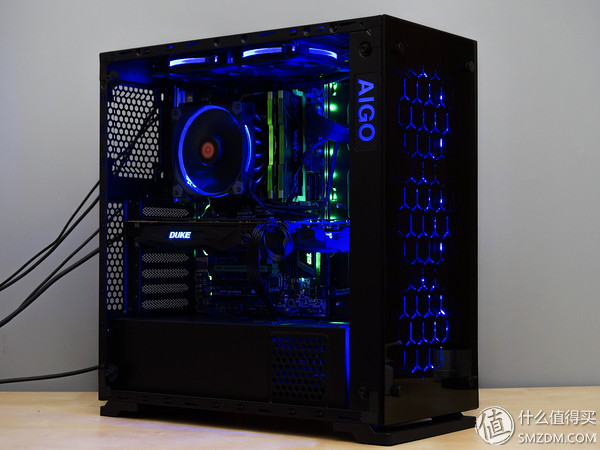

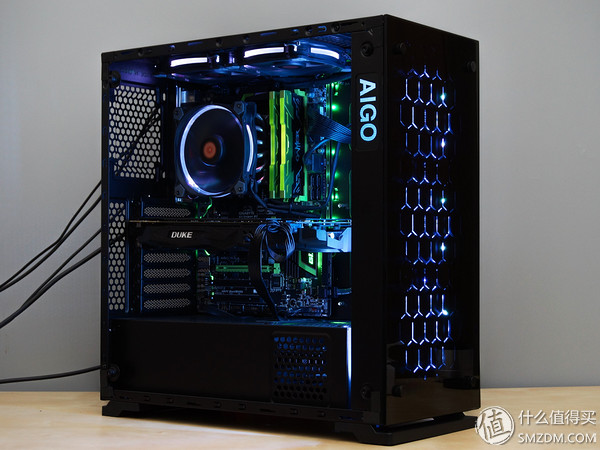

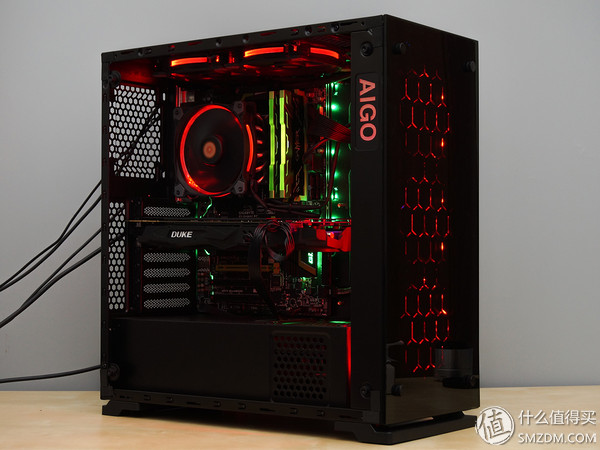

If you replace the backlight with a different color, you can kill Matt.

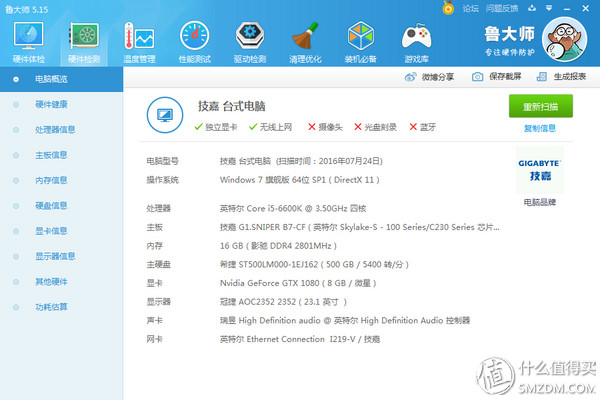

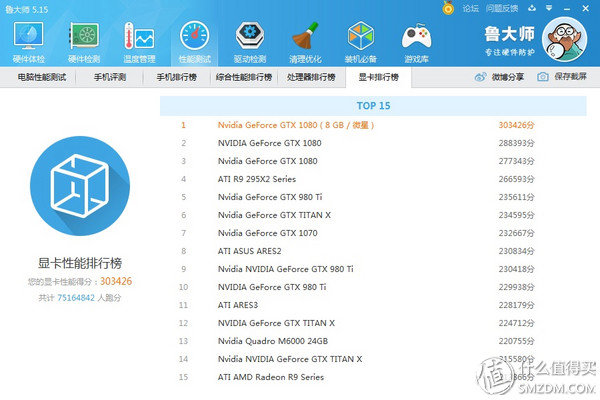

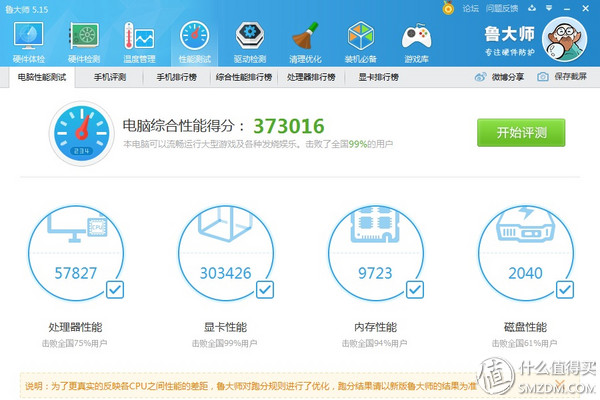

Entertainment Master Lu detects and runs points.
Kawang GTX1080 really powerful, run points first, even if Master Lu did not make this mistake.

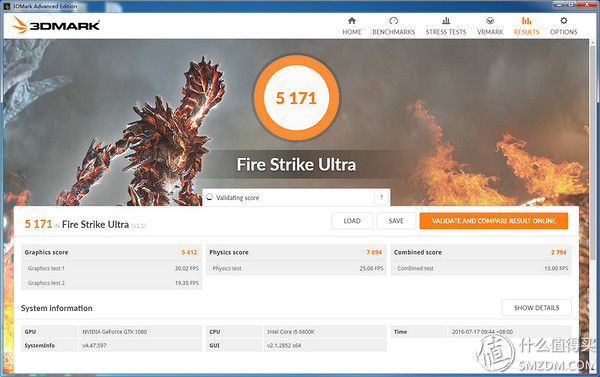

3DMark Fire Strike Ultra Runs 5171

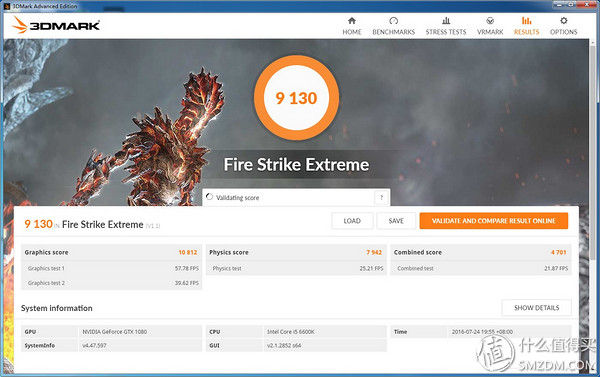

3DMark Fire Strike Extreme Runs 9130

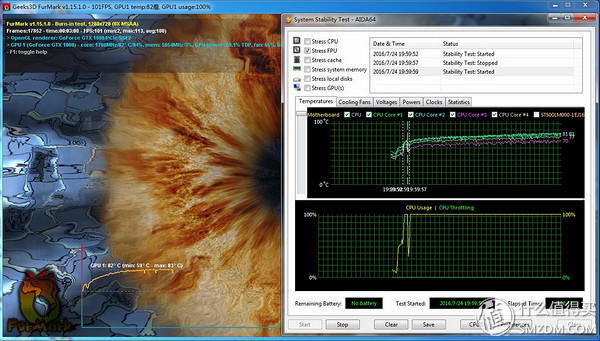

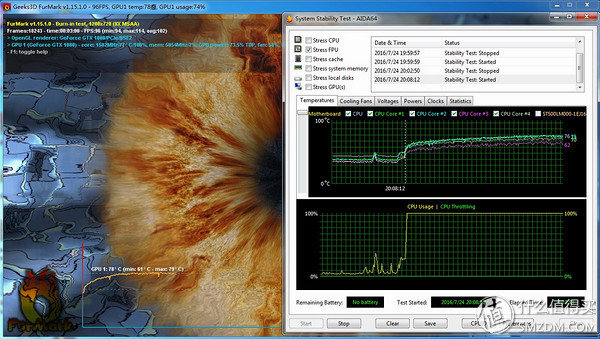

Tempered glass chassis is easy to make stuffy cans, so the winder tests the air duct of the chassis and judges whether the inside of the chassis is unobstructed by comparing the temperature difference between the open/close conditions of the side panels. The test uses the AIDA64 full load CPU+FurMark full load video card at room temperature 35 °C environment.
Test 1, closed chassis, CPU 81 °C, graphics card 83 °C
Test 2, open the side panel, CPU 76 °C, graphics card 79 °C
From the test results, after the side panel is opened, the temperature changes about 4~5°C. Consider this is the comparative data at a very high temperature of 35°C, plus the low-speed mode that Tt Riing fan is on, so the Moonlight Box X The air duct of the chassis can be accepted, but we must remember to install a fan. The default chassis only has 3 inlet fans on the front. The lack of an outlet fan is not reasonable.
to sum up
Regarding the installation direction, I chose the appearance as the primary factor. Now the performance of the computer is more or less a bit surplus, and the performance is still important. But it is no longer the only concern for everyone, from the increasingly exaggerated radiator shape and RGB backlight. Can also explain the focus of consumers.
About color, red and black are the mainstream, more optional hardware, like this green and black color, motherboard, memory, etc. can be selected less, a bit high and low, not recommended for novice users to try, my words is to find this match Fun.
With respect to backlighting, now popular RGB design, I think this is very good, can choose RGB words as far as possible, because each hardware even if the same color design, there will still be color differences between the backlight, then the advantages of RGB come out, You can slightly adjust the included brightness. The RGB adjustment method is preferably set by software. For example, Tt Riing RGB fans need to be quite troublesome to press the controller inside the chassis.
With regard to performance, nothing more to say, GTX1080 card games are yo.
Regarding noise, I did not particularly consider this point. Fortunately, the noise of the three fans and the GX650 power supply fan provided by the Moonlight Box X is not high, and the Tt Riing RGB fan can be adjusted in both high and low speeds, so I don't feel noisy overall. Of course, with so many fans, there is always a bit of noise close to listening.
Finish
