On April 16, 2015, Datongda Holdings, a leading electronic component distributor dedicated to the Asia-Pacific market, announced that its product has launched a commercial lighting solution based on the Infineon quasi-resonant controller ICL5101 to meet commercial lighting applications. The need for high performance, high reliability systems. Typical applications include indoor and outdoor LED lighting, high/low shed lighting, street lighting, parking and ceiling lighting, office lighting, retail and store lighting.
Infineon ICL5101 integrates PFC and LLC into the company, which reduces the cost and reduces the size and system reliability Operating parameters can be adjusted by simple resistors; can be lit in any very short time (less than 200 ms); its adjustable PFC unit can output high quality power, with a true THD of less than 10% over a wide input voltage range. To help lighting manufacturers achieve energy efficiency standards; their junction temperature range is -40 ° C to +125 ° C; external over temperature protection and capacitive load protection and other protection functions to ensure timely detection of fault conditions and improve system safety . It is worth emphasizing that the resonant topology efficiency supported by the ICL5101 is as high as 95%.

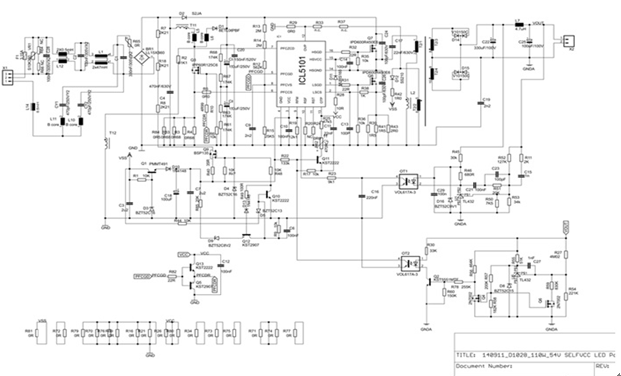

Figure 1 - Integraon ICL5101 system architecture diagram
The company's Infineon ICL5101 commercial lighting solution features:
Product highlights
• Support 85V-305V full voltage input
• Fewer peripheral components for higher reliability
• Adjust parameters only with resistors
• Ambient temperature -40 °C to +125 °C
• Load regulation rate of 0.1%, no noise, support dimming function
• Integrated complete protection and temperature protection
• Ultra fast start time "200 ms
• FPC 》 95 %, THD 10 %
• Up to 94% efficiency
PFC feature set
• PFC is working in CRM mode, working in DCM mode in light load mode, ensuring no noise when dimming to 0.1%
• Optimize to improve THD
• PFC output voltage is adjustable
Resonant half bridge feature set
• 650V half-bridge driver with coreless transformer technology
• Adaptive dead time 500 ns – 1.0 μs
• Adjustable overload, short circuit, open circuit detection
• Capacitive load detection
• Optimized magnetic saturation control at the start-up instant

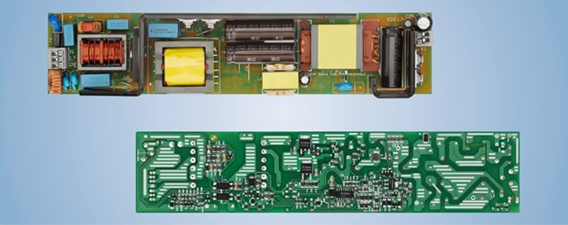

Figure 2 - The photo of the Infineon ICL5101 demo board
Specifications
• Input voltage range: 85-305 VAC
• Input voltage frequency: 47-63 Hz
• Output specification: 54 VDC / 2.06 A
• Efficiency: ≥ 93.5 % at 230 Vac
• THD: "10 % @ POUT" 40 W at 230 Vac
• Energy efficiency standards: According to EN61000-3-2 Class-D
• EMI:According to EN55015
• Safety standards: According to EN61347-2-13
• Demo board size: 227.3 mm (L) x 48.25 mm (W) x 30 mm (H)
