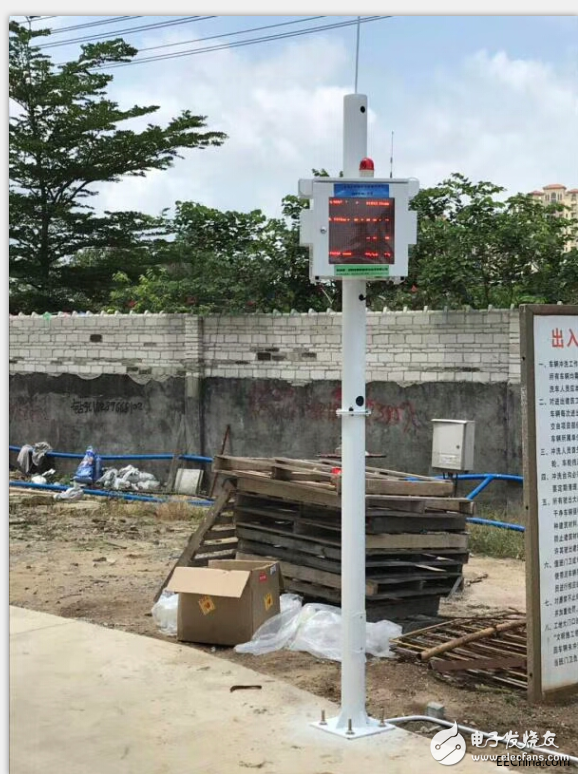

Shenzhen Biru Blue Environmental Technology Co., Ltd. uses wireless sensor technology and laser dust test equipment to improve air quality. The self-developed all-weather outdoor dust monitoring system can monitor PM2.5, PM10, TSP, and in addition to dust monitoring. Environmental factors such as noise, ambient temperature, ambient humidity, wind speed, wind direction, etc. The test data of each test point is directly uploaded to the monitoring background through wireless communication, which greatly saves the monitoring cost of the environmental protection department and improves the monitoring efficiency.
Application industry:
Construction sites, demolition sites, coal mines, industrial parks, communities, road construction, garbage plants, mixing stations, sand mining sites, urban environments, residential quarters, etc.
Guangdong construction site dust monitoring system manufacturers, road construction dust noise pollution monitoring equipment consists of:
The system consists of data collector, sensor, wireless transmission system, background data processing system and information monitoring management platform. The monitoring substation integrates atmospheric PM2.5, PM10 monitoring, ambient temperature and humidity and wind speed and wind direction monitoring, noise monitoring, video monitoring and pollutant over-target video capture (optional), and toxic and harmful gas monitoring (optional) and other functions; The data platform is a networked platform of the Internet architecture. It has various functions such as monitoring functions for each substation and reporting, recording, querying, statistics, and report output of data. The system can also be linked to various pollution control devices for automatic control purposes.
Guangdong construction site dust monitoring system manufacturers, road construction dust noise pollution monitoring equipment product features:
1, real-time online monitoring 24 hours a day.
2. In order to provide accurate particle concentration information, multiple sensors can be connected and transmitted remotely to the large display.
3, set up the report * management, send text messages to the mobile phone after the limit, timely pre-*, improve the effectiveness of real-time monitoring.
4. Temporary faults in the external power supply and communication system do not affect the data collection. After the communication is restored, the data transmitted by the delay can be automatically downloaded; the data that has been collected and stored is not lost by the permanent power failure.
5, support a variety of sizes of color LCD and LED outdoor display and other real-time display data. (Outdoor display can be customized according to customer needs)
6. Realize the storage management of data, display data graphs of monitoring points, curve analysis, over-limit and over-reporting statistics, etc., to provide decision-making basis for the regulatory authorities.
Guangdong construction site dust monitoring system manufacturers, road construction dust noise pollution monitoring equipment technical parameters indicators:
PM technical parameters:
Measuring range: 0.3 to 1.0, 1.0 to 2.5, 2.5 to 10 microns (um)
Range: 0 ~ 500ug / m3
Counting accuracy: 50%@0.3um, 98%@≥0.5um
Weighing volume: 0.1 liter (L)
Response time: ≤ 10 seconds (s)
Wind speed parameter: Measuring range: 0-30m 0-60m (optional) Resolution: 0.1m/s Measurement accuracy: ±1m/s
Wind direction parameters: Wind direction range: 0 ~ 360 ° / 16 Azimuth Resolution: 1 ° Measurement accuracy: ± 3 °
TSP parameters: Measurement range: 0.01-10000 ug/m3 Detection sensitivity: 0.01 ug/m3; Measurement accuracy: ±10%
Temperature parameter: Measuring range: -30~70°C Resolution: 0.1°C Accuracy: ±0.3°C
Humidity parameter: Range: 0~100%RH Resolution: 0.1%RH Accuracy: ±3%RH
Noise parameters: Range: 30~130dB Frequency range: 31.5Hz~8kHz Accuracy: ±1.5dB noise
Power supply system AC220V or solar powered
Communication system RS485, GPRS, Ethernet, etc. (optional)
