At the beginning of 2018, as an important practical project in Suzhou, the construction of Suzhou Olympic Sports Center has gradually come to an end. This comprehensive Grade A sports center can not only host the largest sports events and concerts in Suzhou, but also has a huge underground commercial street and business hotel, which can be said to be a giant sports park-style shopping mall!

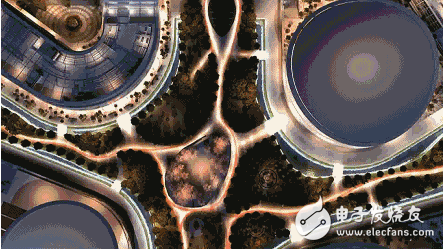

Aerial view of Suzhou Olympic Sports Center
Suzhou Olympic Sports Center is located in the core area of ​​Hudong, Suzhou Industrial Park, with a planned total area of ​​nearly 60 hectares and a capacity of 80,000 people. It includes a sports park, a 45,000-person stadium, a 3,000-swimming pool, a 10,000-person gym and a national fitness center. With world-class functional facilities, bucket screens, ring-field screens, multi-functional mother frames, raised floors ... it really has everything. This time, Shanghai Sansi designed and manufactured 17 LED full-color screens for the Olympic Sports Center, with a total area of ​​2148 square meters.

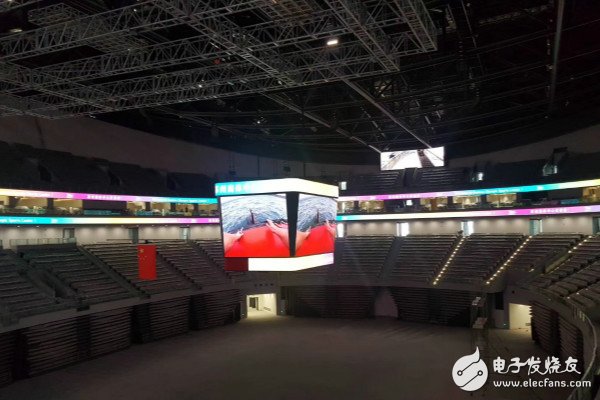

Gymnasium LED bucket screen and ring field screen
In the future high-profile events, to create this ultimate experience of high participation, one thing is indispensable, that is the LED bucket screen located in the center of the venue. The center of the gymnasium of the Olympic Sports Center is equipped with such an LED bucket screen with NBA game-level standards. The main screen is about 150 square meters, and the point spacing is only 3.91mm; the upper and lower ring screens of the bucket screen are about 69 square meters. The pitch is 10mm.
Sansi's LED bucket screen can clearly show the eye-catching position of the event to all the audience in time. HD displays every detail, 360-degree omnidirectional viewing angle, good color reproduction, plus the smooth switching of the picture, let the fans They shouted "good looking and enjoyable". These technical successes are already familiar to Shanghai Sansi. The bucket-shaped screens designed and manufactured earlier have been used in the sports competitions of the Mercedes-Benz Cultural Center. The newly completed Qingdao Citizen Fitness Center is also equipped with Shanghai Sansi's LED bucket screen, which has the ability to conduct domestic and international high-standard major events.

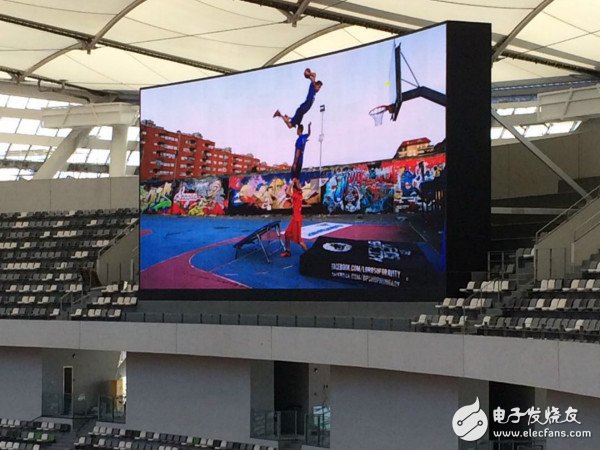

LED screen in the stadium
At the north and south ends of the stadium, there are LED indoor full-color screens with an area of ​​51.61 square meters and 55.3 square meters, respectively, with a spacing of 10mm. The P16 ring field screen in the stadium is the largest in the stadium, with an area of ​​415 square meters.

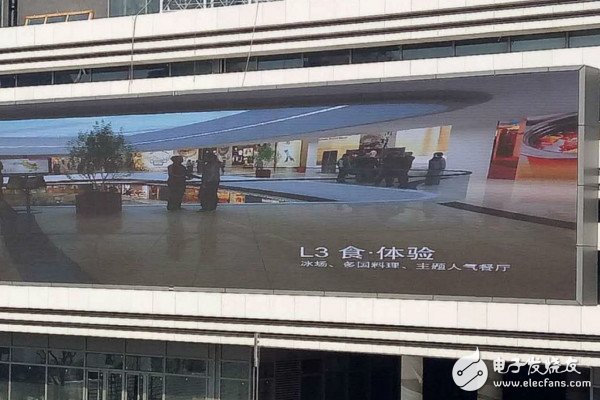

Service building LED outdoor full color screen

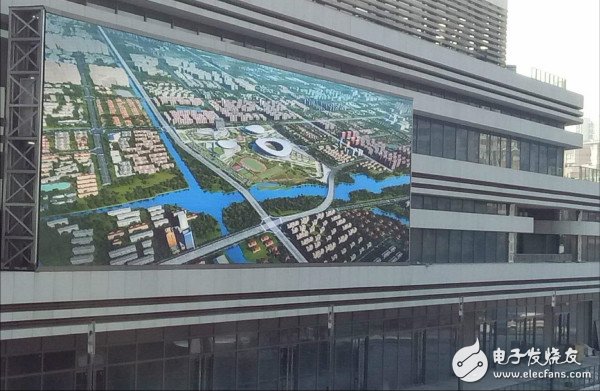

Service building LED outdoor full color screen
Three LED full-color screens were installed in the swimming pool, training ground and service building ice rink. Among them, the waterproof full-color screen of the swimming pool is 69.12 square meters with a spacing of 10mm; the outdoor full-color screen area of ​​the training ground is 67.2 square meters and the spacing is 16mm, which also has a waterproof function; ㎡, the spacing is 10mm.

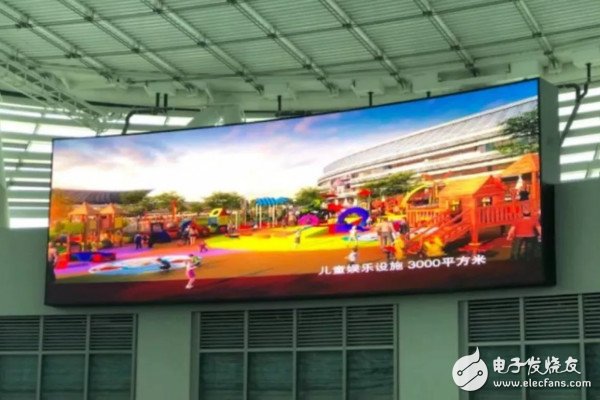

Swimming pool LED screen
The construction of the Suzhou Olympic Sports Center has been highly anticipated by the citizens and has received strong support from all walks of life. It not only promotes the prosperous development of Hudong District, but also presents a rich and colorful feast for the Suzhou people, leading the people into a new era of healthy life. At present, the stadium construction has entered the final stage. After completing the completion acceptance and operation test, it is expected to be open to the general public in Suzhou in October and make a wonderful appearance. Let us look forward to it!
