To this end, the industry has promoted the construction of “light storage and charging†integrated charging station, through energy storage and optimized configuration, to achieve a basic balance between local energy production and energy use load. It can not only solve the charging demand of new energy vehicles, but also improve the use of clean energy, and maximize the organic combination of environmental protection, energy utilization, and technical and economic indicators.
Although China has become the world's largest electric vehicle market, the problem of difficult charging is still a major bottleneck for the large-scale promotion and application of electric vehicles.
At this stage, most of China's electric vehicles are charged by the public grid. Not only the cost of construction and renovation of power distribution facilities is high, but also the power quality of the grid is greatly affected when the electric vehicles are disorderly charged.
To this end, the industry has promoted the construction of “light storage and charging†integrated charging station, through energy storage and optimized configuration, to achieve a basic balance between local energy production and energy use load. It can not only solve the charging demand of new energy vehicles, but also improve the use of clean energy, and maximize the organic combination of environmental protection, energy utilization, and technical and economic indicators.
Under the above background, China has strengthened its energy structure adjustment and increased the support for distributed energy. This provides an opportunity for the integrated development of distributed energy and automotive charging stations.
However, the traditional implementation of integrated development of distributed energy and vehicle charging stations also has the disadvantages of one-way transmission, large energy inverter loss and low efficiency. To this end, Shenzhen Anhewei Power Technology Co., Ltd. has launched the “light storage and charging†integrated charging facility – a common DC bus IGBT charging set, which can effectively reduce energy conversion loss, and also has the advantages of cost saving and efficiency improvement.
Analysis of integrated solutions for distributed energy and charging stations

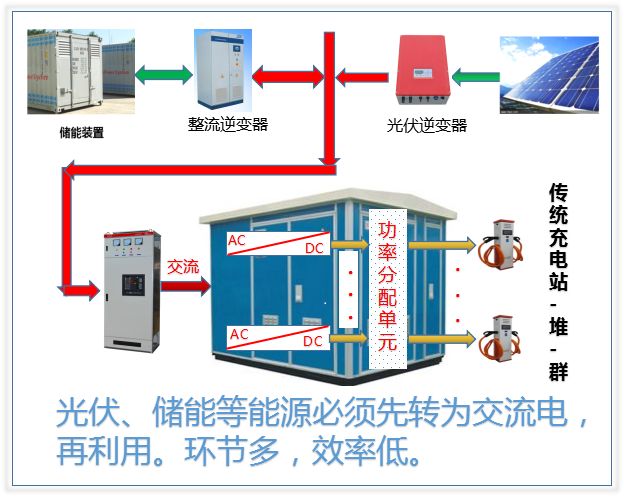

It is understood that the traditional implementation method of the integration of distributed energy and electric vehicle charging stations is to convert photovoltaic, energy storage and other energy (direct current) into alternating current, and then to the charging facilities through the power grid and power distribution facilities. As shown below:
"In this way, energy is transmitted in one direction, and there are many links in energy conversion. In the process of transformation, the energy inversion loss is large and the efficiency is low." Huang Daqiang, deputy general manager of Anhewei, said.
So, is there a way to achieve both the two-way transmission of energy and to reduce energy loss and efficiency?

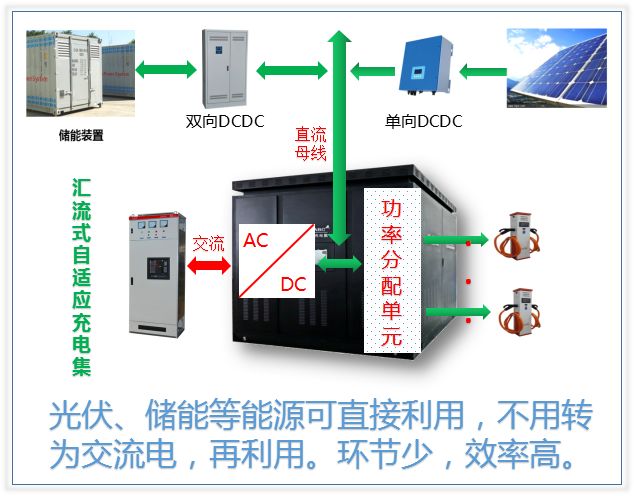

It is understood that if the distributed power and charging facilities directly use the DC-side switching energy (ie, the common DC bus), bidirectional and efficient transmission can be realized. As shown below:

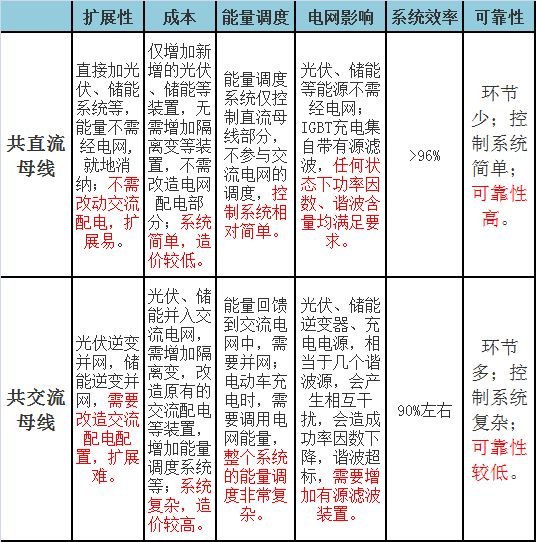

Specifically, the “light storage and charging†integrated system using common DC bus and common AC bus has obvious contrasts in terms of scalability, cost, energy scheduling, grid impact, system efficiency and reliability, and these are The integrated DC bus "light storage and charging" integrated system has advantages. The specific comparison is as follows:
In fact, the Anhewei IGBT bus-flow adaptive charging set is a typical representative of the integrated DC bus "light storage" integrated charging facility, and is also the world's leading and only commercialized common DC bus IGBT charging set.
How to help the common DC bus IGBT charging set?

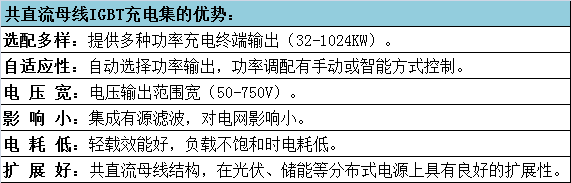

As a fulcrum of distributed energy systems and power distribution, the common DC bus IGBT charging set has the advantages of high body conversion efficiency (≥96%), low standby power consumption (≤0.3 ‰), and long service life (10-15 years). The specific advantages are as follows:
In general, the common DC bus IGBT charging set is not only an excellent charging facility, but also a pivot point for distributed power supply and power distribution. It is also the most suitable equipment system for integrated application of electric vehicle charging station and distributed power microgrid. .
At present, Anhewei's common DC bus IGBT charging set has established more than 10 sites in Shenzhen, Zhongshan, Guangzhou, Guilin, Liuzhou, Hebei and other cities, including Shenzhen Diankeng, Guangzhou Dajinzhong, and Jingkeng. Charging stations in several areas such as mountains have been commercialized and operational feedback is good.
In addition, according to Huang Daqiang, recently, a number of industry giants are extremely interested in Anhewei's common DC bus IGBT charging set, and are negotiating corresponding cooperation matters.
In the future, large and medium-sized cities with relatively high population density and relatively developed economy are densely populated areas of automobile transportation, but they are also the key areas for the development of distributed energy. And Anhewei's common DC bus IGBT charging set has undoubtedly promoted the construction of integrated systems for distributed energy and electric vehicle charging piles.
