In winter, the risk of static electricity damaging electronic components and equipment is significant. That's why production lines invest heavily in anti-static measures—because static electricity can be really dangerous! So, how can we prevent static damage when working with lab equipment?
**First, how is static electricity generated?**
Static electricity occurs when two different materials come into contact and then separate. This process, known as friction, can generate a charge. Another way static electricity is created is through induction: when a conductive material is placed in an electric field, charges redistribute, leading to a build-up of static. Lastly, conduction can also cause static electricity. When a conductive object touches a charged object, electrons transfer between them, resulting in a static charge.
Figure 1 shows a human body electrostatic model. When the switch is connected to point A, the capacitor is charged, simulating the accumulation of static on the human body. When the switch is moved to point B, the stored charge is discharged through a resistor (representing body resistance), mimicking the moment a person touches an instrument. This discharge happens in just a few hundred microseconds and can produce a large current that may damage internal components of the device.
**Second, why are instruments so vulnerable to static electricity?**
Instruments must meet electromagnetic compatibility standards, such as IEC61326-1, which includes tests for electrostatic immunity. According to IEC61000-4-2, devices must withstand discharges of up to 4kV (contact discharge) and 8kV (air discharge).
1. **High-frequency instruments are more sensitive**
Oscilloscopes, for example, are high-impedance devices and are particularly susceptible to static. If static builds up and cannot be discharged, it can cause breakdowns. Additionally, ESD protection devices can affect signal integrity, making it difficult to integrate too many in high-frequency instruments, thus reducing their protection level.
2. **Improper handling can lead to damage**

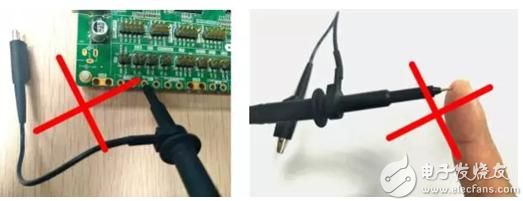

Incorrect use, such as connecting the probe first without grounding, or touching the probe directly with your hands, can introduce static into the system. These actions should be avoided at all costs.
For instance, if you connect the oscilloscope probe to a signal line before grounding, static could flow through the oscilloscope’s circuit, potentially causing damage. Similarly, touching the probe tip with bare hands can transfer static directly to the device.
**Third, what can we do to protect against static?**
Even though instruments have some built-in protection, excessive static can still cause damage. Here are some essential steps to minimize risks:
1. **Ensure proper grounding**
Always ground the instrument before starting any measurement. If floating measurements are unavoidable, discharge any static buildup first.
2. **Prepare the environment**

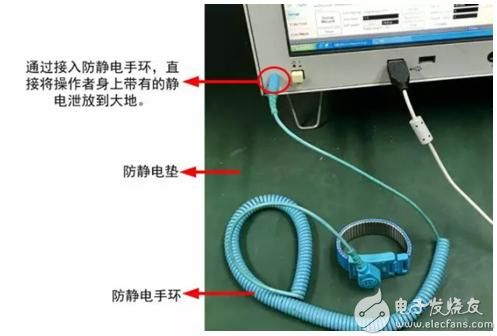

In controlled environments, use anti-static flooring, clothing, and wristbands. For high-frequency instruments, wearing an anti-static wristband helps discharge static directly to the ground.
3. **Ground first, then connect the signal**
When measuring a circuit board, always connect the ground clip first, then the signal probe. This prevents static from passing through the oscilloscope’s sensitive circuitry.
4. **Avoid touching exposed interfaces**
Do not touch the probe tips or other exposed parts of electronic devices. Even small amounts of static can be harmful.
**Fourth, summary**
Static electricity is a real threat, especially in dry winter conditions. Operators must be aware of this risk and take necessary precautions. Whether you're in the north or anywhere else, being mindful of static can help protect valuable equipment and ensure accurate measurements. Always follow proper procedures, and never underestimate the power of a simple static discharge.
