Precision load regulation power supply based on LT4180 design - Power Circuit - Circuit Diagram

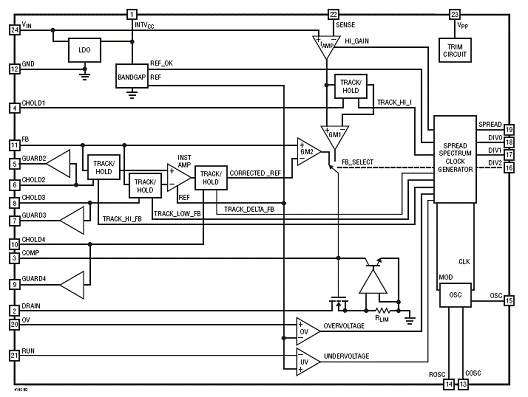

The LT4180 is a full-featured power controller with integrated 5mA optoisolator, undervoltage/overvoltage lockout, soft-start and ±1% internal reference. The LT4180's virtual telemetry features include user-programmed jitter frequency and spread spectrum jitter. The voltage ranges from 3.1V to 50V, mainly used in 12V high intensity brightness lamps, 28V industrial systems, CAT5 cable systems larger than 40W, AC and DC adapters, downhole acquisition and other remote control instruments. This article introduces the main features, block diagrams and typical applications of the LT4180. The circuit includes a 12V/500mA linear regulator circuit diagram, a 12V/600mA boost regulator circuit diagram and a 3.3V isolated flyback regulator circuit diagram.

The LT4180 solves the problem of providing tight load regulation over long, highly resistive cables without requiring an additional pair of remote sense wires. This Virtual Remote SenseTM device continuously interrogates the line impedance and corrects the power supply output voltage via its feedback loop to maintain a steady voltage at the load regardless of current changes.

The LT4180 is a full-featured controller with 5mA optoisolator sink capability, under/overvoltage lockout, soft-start and a ±1% internal voltage reference. The Virtual Remote Sense feature set includes user-programmable dither frequency and optional spread spectrum dither.

The LT4180 works with any topology and type of isolated or nonisolated power supply, including DC/DC converters and adjustable linear regulators.

The LT4180 is available in a 24-pin, SSOP package.

Main features of the LT4180:

Tight Load Regulation with Highly Resistive Cables without Requiring Remote Sense Wiring

Compatible with Isolated and Nonisolated Power Supplies

±1% Internal Voltage Reference

5mA Sink Current Capability

Soft-Correct Reduces Turn-On Transients

Undervoltage and Overvoltage Protection

Pin-Programmable Dither Frequency

Optional Spread Spectrum Dither

Wide VIN Range: 3.1V to 50V

24-Pin SSOP Package

LT4180 application:

12V High Intensity Lamps

28V Industrial Systems

High Power (>40 Watts) CAT5 Cable Systems

Wiring Drop Cancellation for Notebook Computer Battery Charging

AC and DC Adaptors

Well-Logging and Other Remote Instrumentation

Surveillance Equipment
