Metal probes produced by a military engineer must control the quality and size of their products. However, the size of their products is very small, and human detection can cause product damage if they are used with a small amount of force. In addition, the error of human detection may also be uneven due to personal factors.

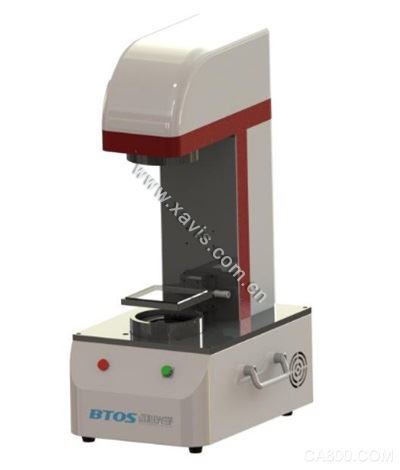

As we all know, the inspection of military products is very strict. Xinwei Vision has developed a visual inspection system SVMN for the detection requirements of a military unit. It has high-precision measurement and provides secondary development, with a telecentric optics (BTOS) double telecentric lens. Accuracy up to 0.01mm, speed up to 0.3S/piece. Solved the problem of artificial size measurement for the unit.
System Solution 1. Adopt Visionvision EM series 5.1 million high-resolution industrial CCD camera, Ethernet interface, stable data transmission. The camera has a power off and power on automatically.
2. Using the telecentric optics (BTOS) double telecentric lens, with large depth of field, zero distortion, and no parallax.
3.150mm LED Industrial Backlight: AFT-BL series LED back light source adopts high brightness and long life LED luminous tube, which can fully highlight the contour information of the measuring or detecting object.
4. The software uses VisionVision Vision Vision software, interface, tools modular, easy to use.
1. The system can independently find the maximum and minimum and measure.
2. Using double telecentric lens, for large-size workpieces, there is no measurement error caused by distortion;
3. There is no parallax caused by the height (thickness) of the product, the inner wall and the outer wall cannot be seen, and the product contour equals the imaging effect;

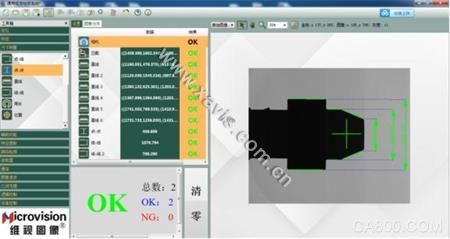

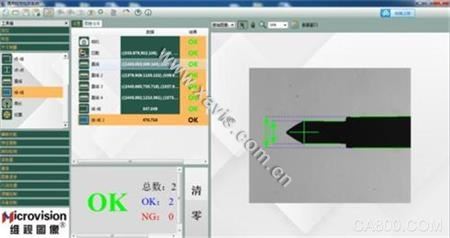

4. Modular intelligent measurement software can measure point-to-point, point-to-line, line-to-line, angle, maximum, minimum, midline, radian, circle detection, etc. It is easy to operate and can be started within half an hour of training. .
5. Compared to the traditional detection method from 30s/a to 0.3s/a.
6. System equipment detection accuracy is 0.01mm.
7. Data and images are saved on the local hard disk, which can track down the bad factors in real time. Image save can be freely set, save type is optional (pass, fail, all);
8. Can detect any product size, not limited to the current product;
9. Different measurement project files can be set up for different products, flexible calls, ten seconds operation.
10. The system equipment adopts manual detection and foot detection, but it includes automatic detection function, and has a trigger and alarm output interface reserved. It can be used to interface with automation equipment.
Expanding Applications 1. Suitable for measuring dimensions of all sizes up to 10 workpieces.
2. In the dimension measurement of the workpiece with a certain height, the system has unparalleled advantages, its no parallax, large depth of field, constant magnification of the optical characteristics, can reach the same kind of measurement software can not match precision.
About Xavis Vision (xavis)
With more than ten years of experience in industrial vision technology and factory applications, he has focused on all aspects of industrial robot automation and machine vision systems solutions and has helped manufacturing industries in many industries improve their competitiveness.
