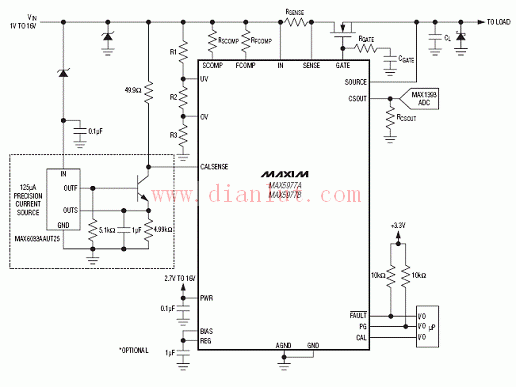

MAX5977A/MAX5977B Application Circuit Diagram

The following is a circuit diagram of [MAX5977A/MAX5977B Application Circuit Diagram]

The MAX5977A/MAX5977B are 1V-16V single-supply hot-swap controllers that provide the most complete system protection. Current sense amplifier output accuracy is 1%, hot-swap monitor voltage is 1V-16V, and has a circuit interrupter function. In general hot plug, network switching and routers, servers and storage systems.
