Fiber-to-the-home connection to wired routing, wired routing and reconnection to wireless routing, how can this be achieved?

Judging from the questions and requirements of the subject, the title owner is a bit high on the network, or the new house is renovated. He wants to leave a certain posterior to himself and prevent subsequent network requirements in all aspects. It is actually the era of science and technology and the era of the Internet. All technology products, digital products, and network products are based on the Internet. Individuals give suggestions based on the current development trend of the Internet, and friends who have just started renovation can refer to it.

Home network status analysis:

1) It is currently certain that the wired connection network is more stable than WIFI and less interfered. There is no limit on the distance (of course, more than 100m of cable attenuation is large, and a dedicated network cable is required), which is faster than the current 5G transmission and is also stable. So now with wired trunking, the primary router turns on DHCP, uses wired trunking (discards the home router, and plays the final afterglow).

3) At present, the development of social science and technology and digital technology has gradually replaced notebook computers, desktop computers (referring to households and enterprises), and most of them are PADs, mobile phones, WIFI speakers, and so on, all of which are based on network WIFI connections.

The first suggestion: pure wired, plus WIFI routing,

Need material:

1) Gigabit wired router (TP-LINK TL-R473G, 1WAN port, 4LAN port, 299 yuan)

2) All Cat 6 cables use Super Six wire.

3) Gigabit router

4) Network device customization in each bedroom

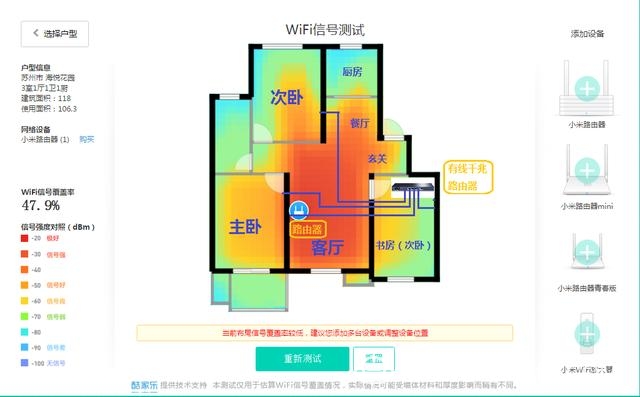

The title owner at home from the description of the problem should be in the 3 bedroom. Find a similar WIFI network deployment diagram on the Internet, that is, if you place a router's WiFi coverage. The test URL is as follows: //#search

Connection diagram surface:

Light cats use Gigabit routers and super six-wires to connect wall boxes in each room. Then the living room is connected to a Gigabit WIFI router, and then the network cable is used to connect TVs and other devices. Each bedroom needs follow-up router equipment.

Network settings:

The first step: reset the router before setting. Then open the management address for wifi settings, using the router settings as an example.

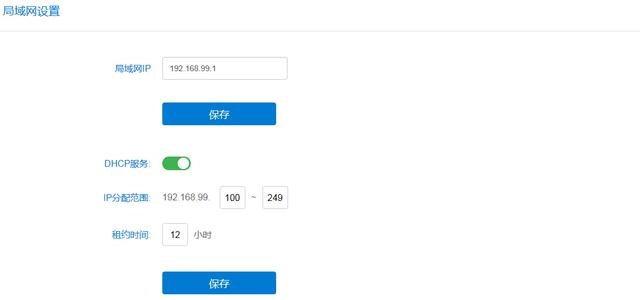

The second step: Gigabit router down the cat, open the DHCP service in the LAN settings, and set the IP.

Pay special attention to this: The IP address of the router on the next level must be different. For example, if the cat IP gateway is 192.168.99.1, the lower limit route (such as the living room router) IP gateway should be set to 192.168.1.1. If the same 192.168.99.1 router on behalf of the living room can not connect to the network.

The third step: the setting of the living room router, the same setting procedure, just the network cable from the main routing LAN port, to connect the WAN port of the living room routing, according to the normal router, reset ==” open the browser to enter the management URL ==” Make settings. Here set to choose the automatic connection method. Not broadband dialing.

Second Recommendation: Wired Routing, Relay Connections

Need material:

1) Gigabit wired router (TP-LINK TL-R473G, 1WAN port, 4LAN port, 299 yuan)

2) All Cat 6 cables use Super Six wire.

3) Gigabit router

4) Several amplifiers

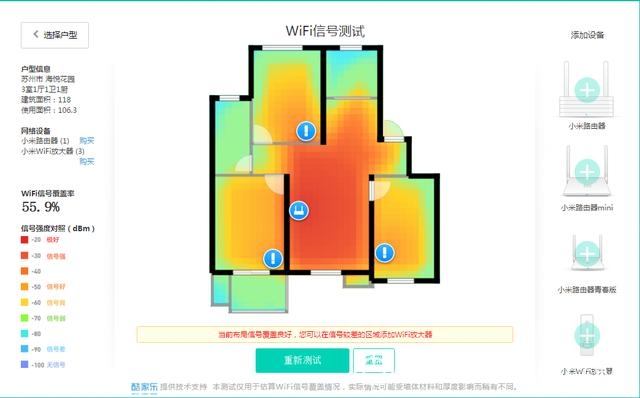

Also refer to the WIFI coverage test. The test URL is as follows: //#search

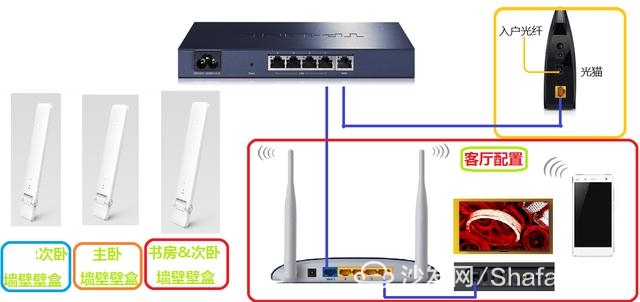

Connection diagram:

Network settings:

The first step: Set up the master router as in scenario one.

The second step is to set up the router in the living room, just as in the second scenario.

The third step is to set up the WIFI amplifier. Here I take the millet amplifier as an example. Not advertising, but I used millet's own, the advantage is that you can automatically roam, if the living room signal is not good, you can directly switch to the stronger amplifier in the area.

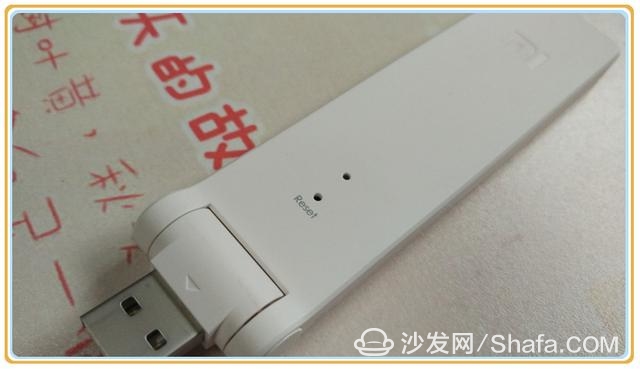

In the same way, press reset rest button, long press yellow flash to reset OK.

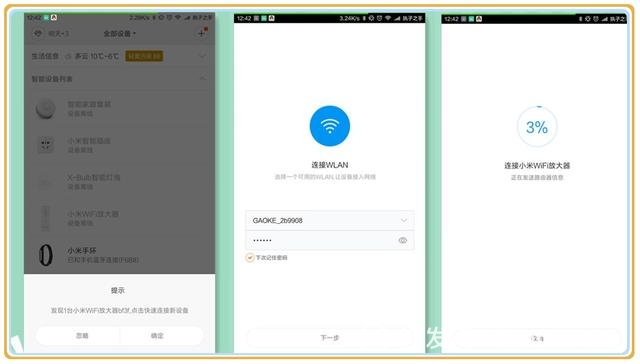

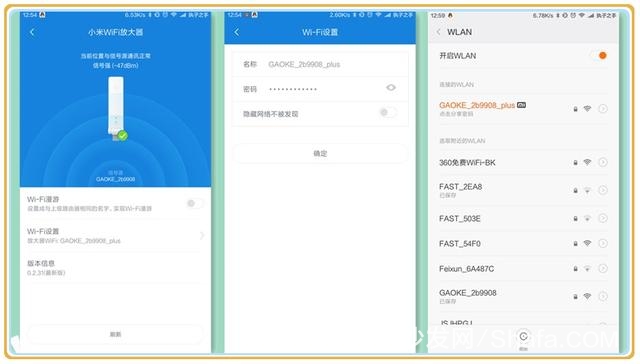

The fourth step: open Mijia APP (two-dimensional code above the amplifier to download), will prompt millet amplifier access. Basically, you can follow the instructions. After connecting, you can set WIFI roaming and amplifier settings.

In fact, the above two solutions can coexist to prevent different follow-up network requirements. It is also possible to directly replace the router of the second scheme with a wireless WIFI router, and all other locations are amplifiers.

Posts are in fact higher-order ones in our live network configuration, Gigabit WAN ports and LAN products, and more than six types of network cables. To prevent the follow-up of different network needs.

The above is purely personal experience, and even regards the subject as himself, the choice of network cabling options. I hope to help more friends with such problems. Like me, you pay attention to me. There is a problem private letter to me, or the following post message discussion, thank you!
