LT3021
The LT3021 is a low dropout linear regulator with an output current of 500mA and a fixed output and output settable.
Main features: input voltage range 0.9-10V; typical differential pressure is 160mV/500mA; fixed output of 1.2, 1.5 and 1.8V (expressed by suffixes 1. 2, 1.5 and 1.8V) ); There is output configurable, the minimum output voltage is 200mV; the output capacitance is 3.3μF; in the range of lout=0～500mA, the load regulation rate is 0.2%; the quiescent current is 130μA; there is off control, when it is off Power consumption 3μA; current limit protection, reverse battery protection; no reverse current; overheat protection with hysteresis; 16-pin DFN package and 8-pin SO package; junction temperature -40 ~ 125 °C.
Applications: low-current power supplies, battery-powered electronics, cellular phones, wireless modems, and more.

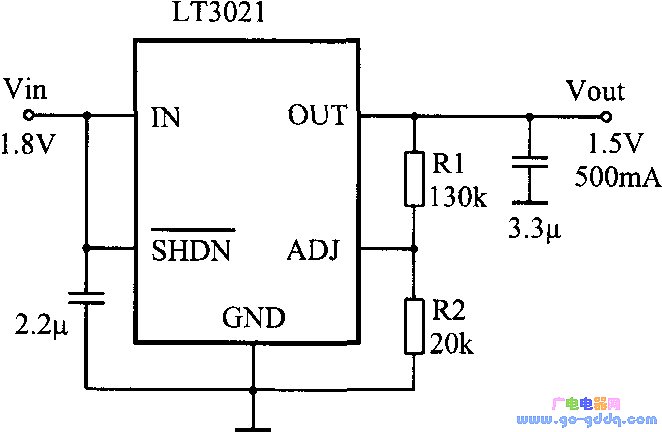

Application Circuit: The output adjustable circuit is shown above. Output voltage Vout=O. 2V (1+R1/R2). The input capacitor is 2.2μF, the output capacitor is 3-3μF, and the chip multilayer ceramic capacitor is used. SHDN (off) is not used, connected to Vin (high level).

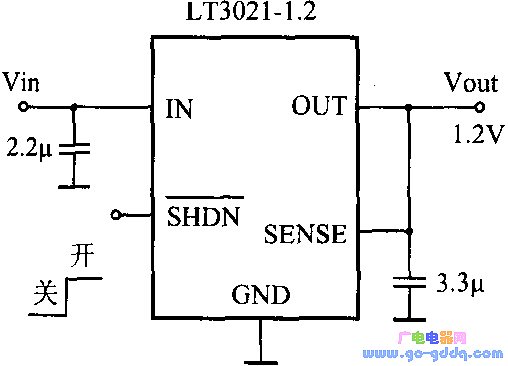

The figure above shows a fixed 1.2V output (model LT302l-1.2) circuit. The SENSE terminal is connected to Vout. When the SHDN terminal is connected to a high level, the circuit works. When connected to a low level, the power is turned off.
