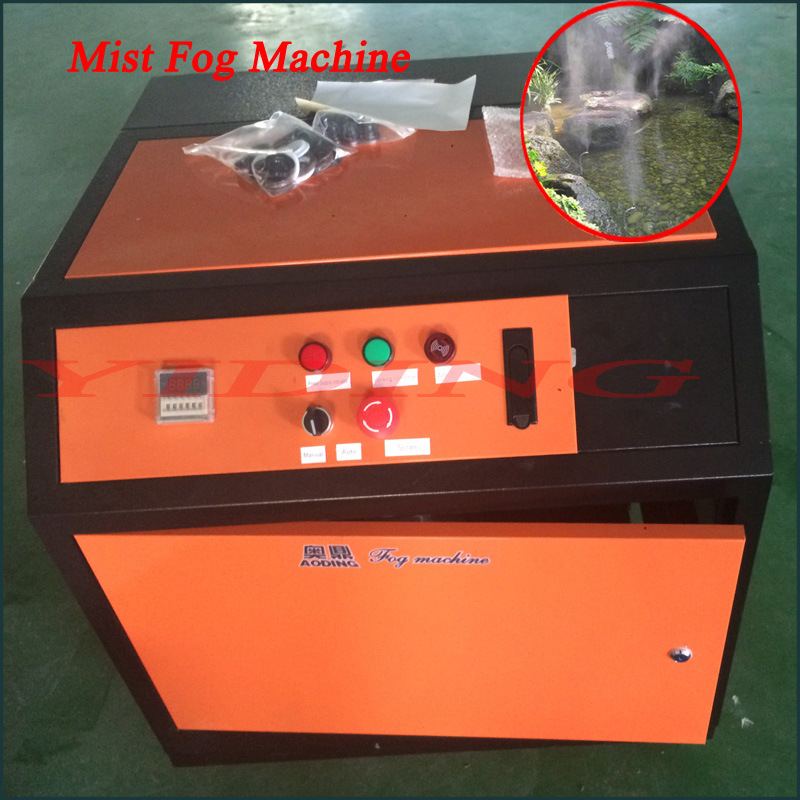

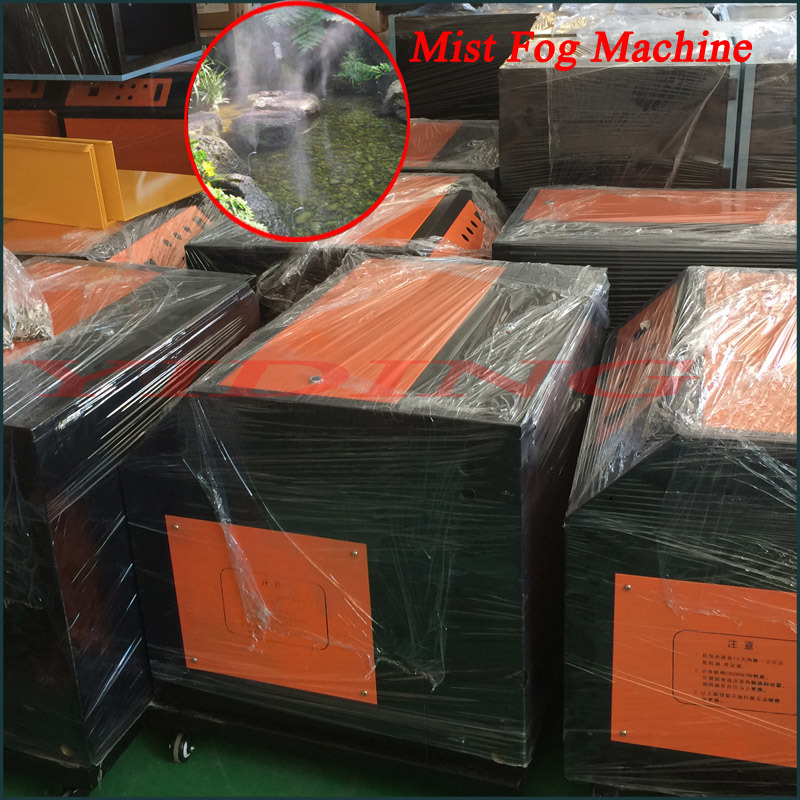

3L/Min-15L/Min Misting Cooling Systems (YDM-0715A)

• Model NO.: YDM-0715A
• Type: High Pressure Triplex Crakshaft Pump
• Certification: CE
• Humidification Method: Mist Discharge
• Timing Function: With Timing Function
• Pump Type: High Pressure Triplex Plunger Pump/Crank Pump
• Liquid Type: Clean Water
• Cover Color: Blue, or Any Other Color for Bulk Order
• Trademark: AODING or OEM
• Specification: CE
• HS Code: 84798920

• Style: Floor Standing and Movable
• Usage: Home, Industry, Commercial & Residential
• Humidity Control: Automatic
• Power Type: Electric Motor
• Water Shortage Power-off Protection: With Water Shortage Power-off Protection
• Usuage Field: Humidification, Dedusting, Deodorization
• Cover Material: Heavy Duty Powder Coated Steel
• Product Name: Mist System
• Transport Package: Carton
• Origin: China

3L/Min-15L/Min Outdoor Misting Cooling Systems:


Standard features:
1, Triplex high pressure heavy-duty crankshaft pump;
(1), Forged brass manifold, provides high strength and corrosion resistance.
(2), Anodized die-cast crankcase, with large cooling fin for maximum heat dissipation.
(3), Hardened and precision grinding crankshaft, for maximum durability and long life.
(4), First-grade ceramic plunger, to increase resistance to pitting and wear, for maximum durability.
(5), Strengthened one-piece alloy aluminium connecting rod.
(6), Italy u-packing.
(7), Reinforced pop-off valve cage.
(8), NSK bearing, for maximum life and load distribution.
(9), Bolt-on pressure adjustable unloader
(10), pressure regulating valve, built-in bypass, with solenoid valve (BPS)
2, Glycerin filled pressure gauge;
3, In line mounted with high pressure solenoid valve to prevent water leakage from the nozzle during the every second when the machine stop working;
4, Heavy duty industrial electric motor with thermal overload;
5, Single/three-phase 2.2kw, 1450 RPM, self ventilated;(can do different voltage and rate)
6; ON-OFF switch;
7, Pressure switch to protect pump against dry running;

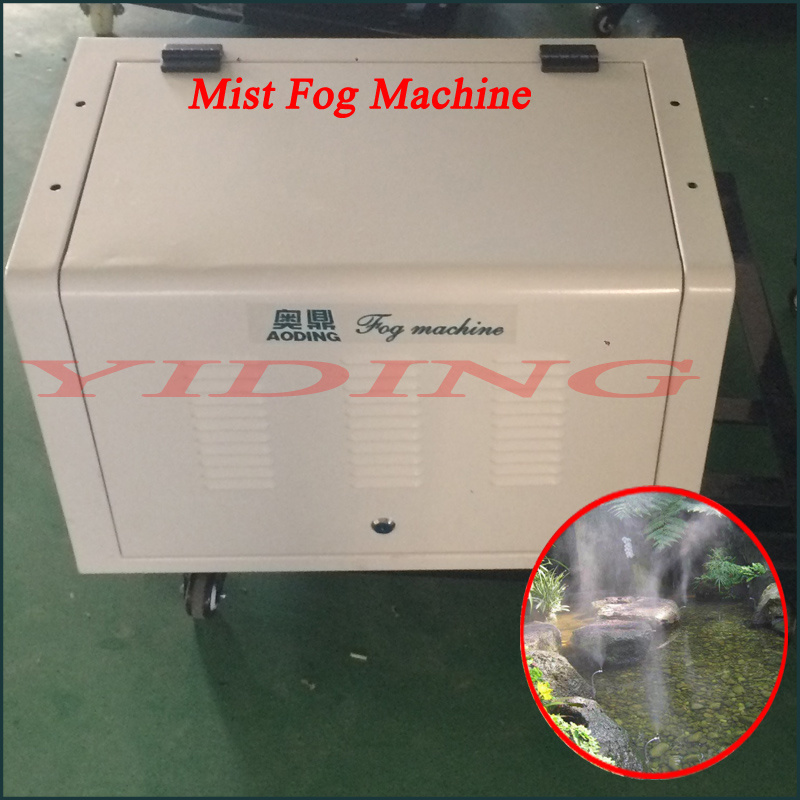

8, Weatherproof Steel cover to protect the pump and motor;
9, Bride with brass flexible coupling, easily to install and prevent leakages;

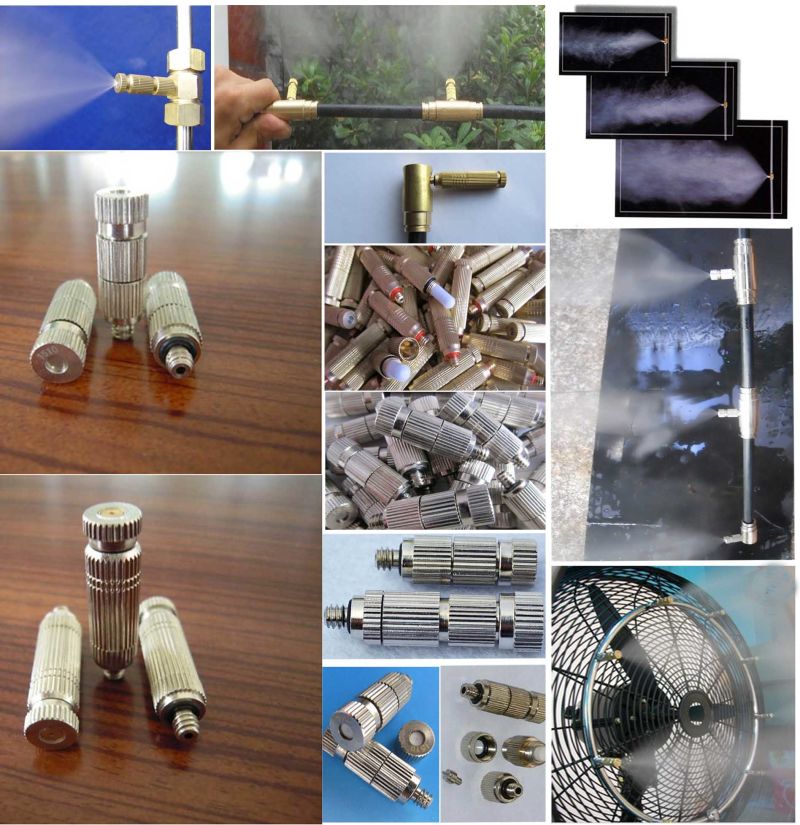

10, Brass / SS (304,316) anti-drip Cleanable Fog Nozzle (Orifice Range: 0.15mm to 1.00 mm)
11, 9.52mm flexible PE Hose.3/8";
12, 50 micron polypropylene high filtration filter system provent small articals(bigg than 0.05mm) going into the machine,
13, Electric Control Panel;
14, Cyclic Digital Timer;
15, Humidity Control Panel;
16,Overload & leakage control;
17,Droplet size: 5-40 Micron
18,Drop the Temperature: 4-10°C
19,Spray Effective Are: 6,800CBM
20,pray Sustainable Time:12 hours
21,Diameter of Fog: < 7μm
22,Volume:support 330m high pressure hose, 331 connectors, and 330 nozzles

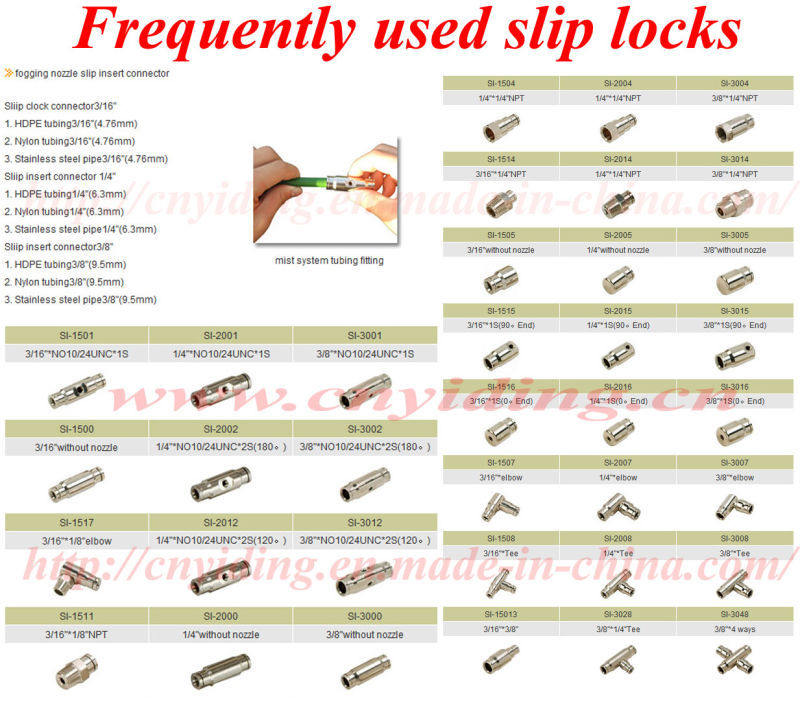

23,Accessoreis List: Nozzle, Nozzle connector, Tubing, Tubing Cutter, Water filter, Tee, Elbow, End, End Plug, Union, Male/female adapter, ball valve and water filter, etc.


Function:
1,Increase profitability;
2,Reduce stress;
3,Refresh the atmosphere;
4, Cooling
Residential cooling, outdoor cooling, commercial place cooling
5,Control humidity(humidification):
Industrial, agricultural and horticultural: green house, garden, livestock farming;
6,Reduce dust & smell (Dedusting and Deodorization):
Industry process, bulk powder, cement plant, foundry dust, fly ash control, waste transfer, recycling process;
7. Insect Control
Please use water-soluble chemical to kill insect.


Applicaton:
(1) Stockbreeding: Deodorization, disinfection, cooling
(2) Diggings and painting area: Cooling, dust-catching, static-elimination
(3) Greenhouse, wine-cellar: Cooling and wetting
(4) Spinning industry: Wetting, static-elimination
(5)Outdoor plaza, sports, open coffee, beer bars: Sight, cooling, mosquito-killing
(6) Kursaal, park, restaurant: Sight, cooling, mosquito-killing
(7) School, factory and warehouse: Cooling



We offers a fine quality range of High Pressure Misting Systems, cooling and misting systems, which have various features including high performance, strong edges, easy to use and low maintenance. These products also have an option of customization as per our clients. We offer demonstration to help our clients.


The machine produces a 5-40 micron water droplets. These droplets when come in contact with hot or dry air immediately evaporat, resulting in a cooling of up to 12 degree C. The evaporation received with our system cools the environment with out any sort of moisture. In this manner it eliminates infections and unsanitary conditions related to other cooling systems.


Advantage:
Stop working automaticly when lack of water;
Fog can spray with different frequencies;
Controlled by the Timer;
Fog can spray at different humidity range according to the data setted;
