Say this Z1 since the aging of the battery last year began to change the machine, during the original battery to buy back to want to replace yourself, toss for a long time and found that the cover can not be opened! ! Then it's been drawered and moldy again. It was not until recently that there was a value-for-money friend who changed the back cover that reminded him of the drawer. If you think about it, you have to think of a desk Z1. Think about it anyway. It's bad, you waste it and you waste it. Maybe you have a miracle.

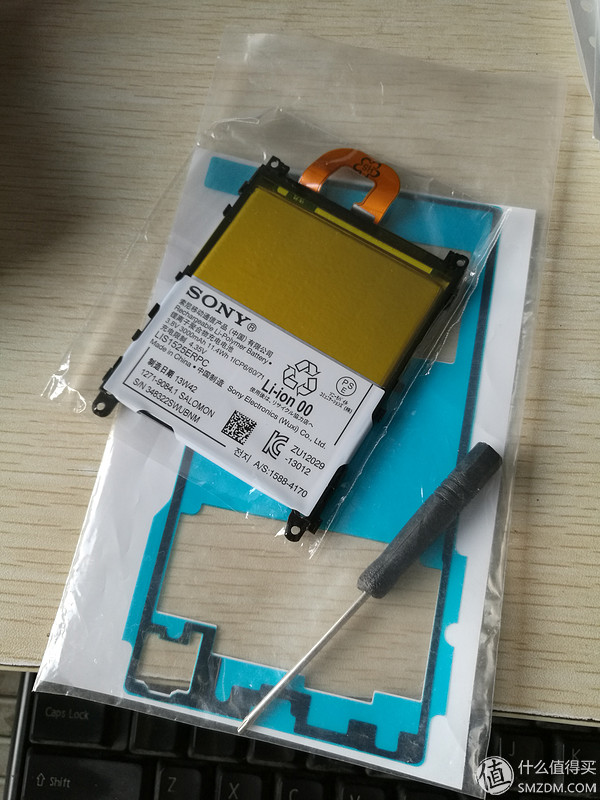

Before opening, you must first have a set of original batteries

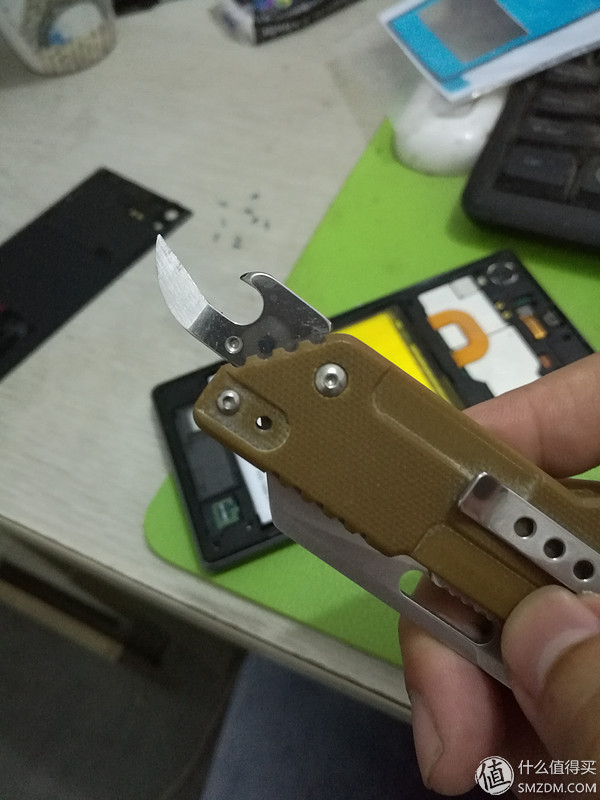

Because it was bought last year, the attached pad was missing. However, as a person who has amassed aunt all day, it's hard to beat me and make my three-edged wood BMW.
The back of the Z1 is made of viscose, and it blows the hair dryer back and forth for a minute or more. Then it feels hot on the back and it begins to curl. (It takes a little longer to blow. Last year, it wasn't blowing, so it can't be removed. ) Start with the gap at the top of the back, feel it open, and slowly cut it in. Cut the waterproof glue on the back. Since there is no fear of temperature drop, there is no picture here.

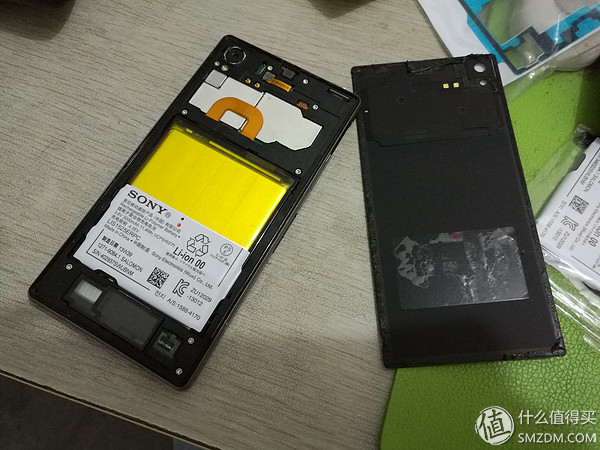

After opening it is like this

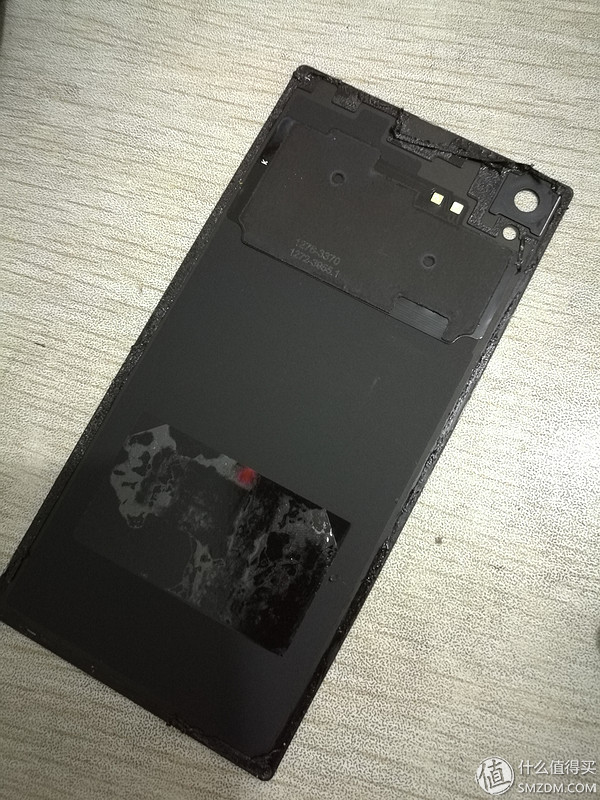

After removing the back cover, the waterproof glue is cut completely.

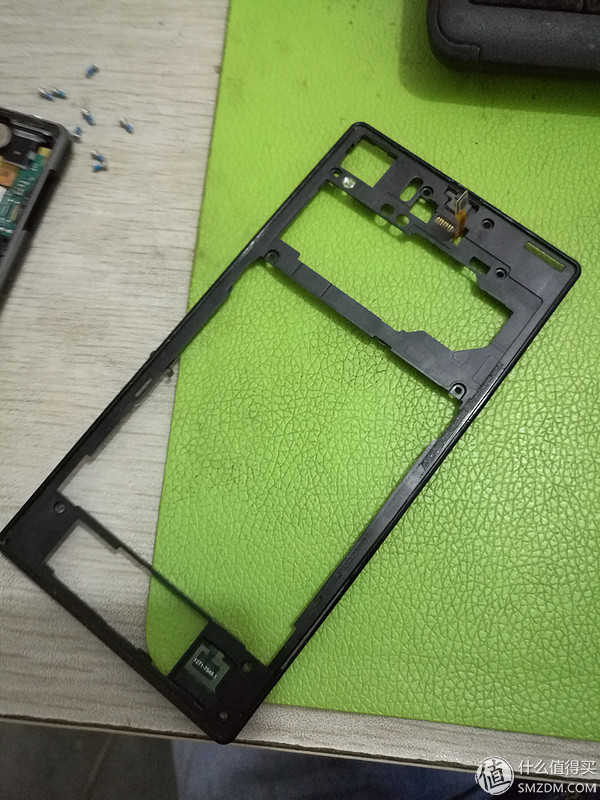

Remove the back cover and there is a plastic middle frame
The original battery may have been blown by a hot air blower
The new battery can't wait to be installed

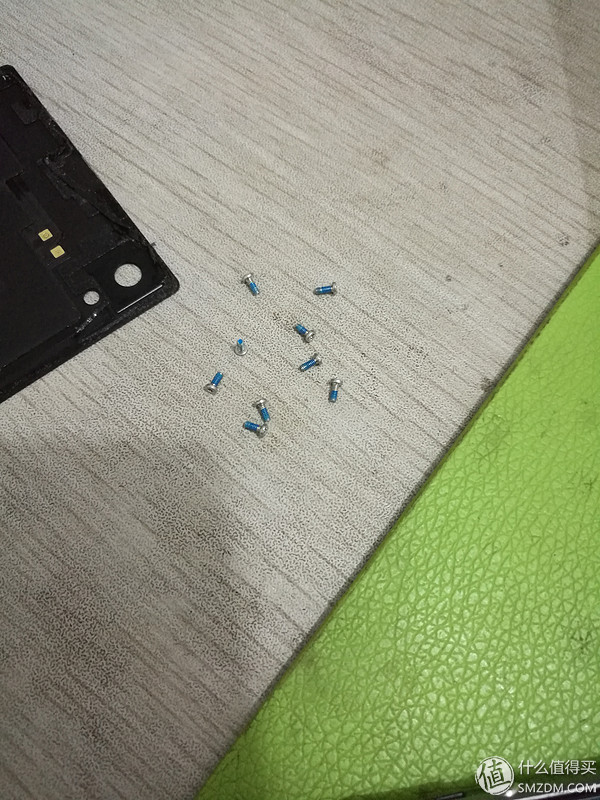

Don't worry, first remove the nine screws in the middle frame.
After the experience of the demolition of the back cover, it is more handy to cut the waterproof glue on the line.

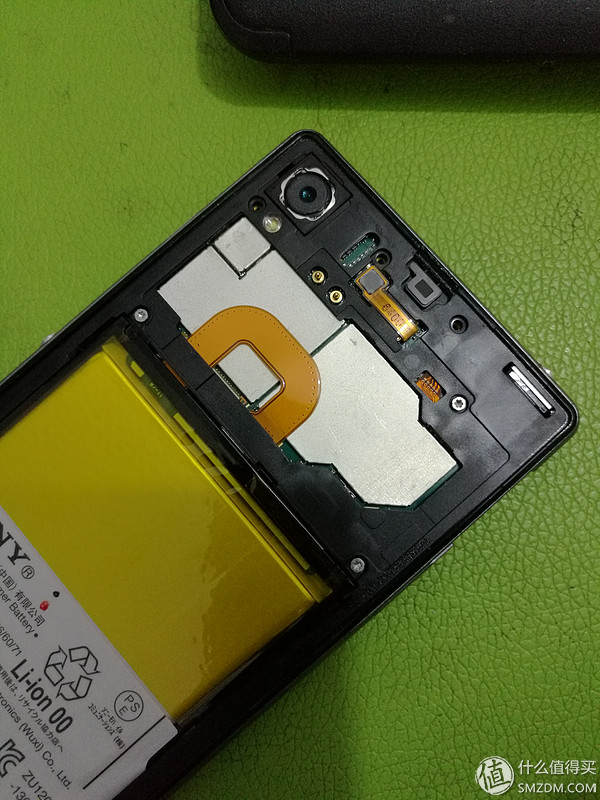

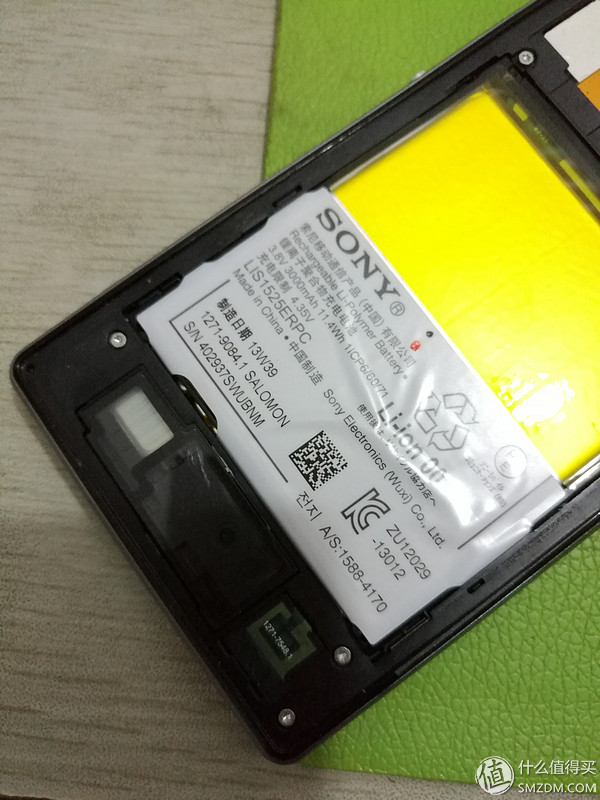

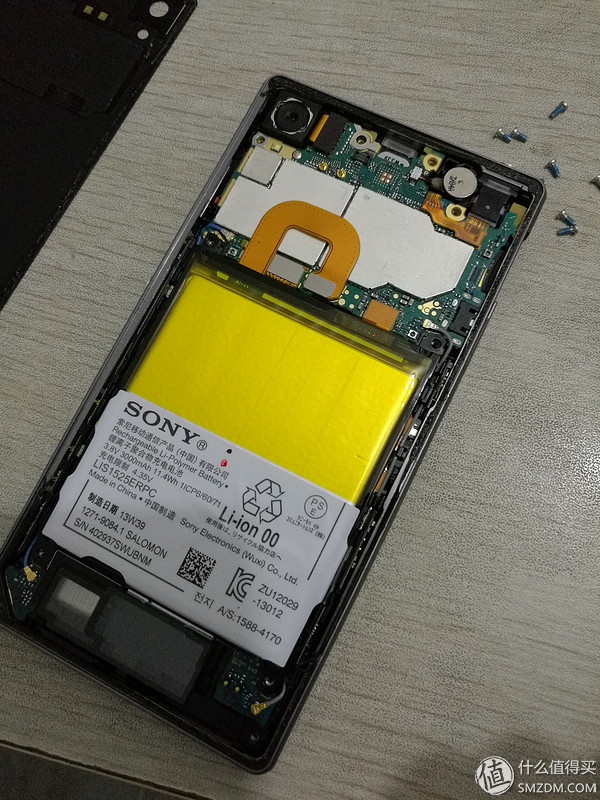

Here the battery is exposed

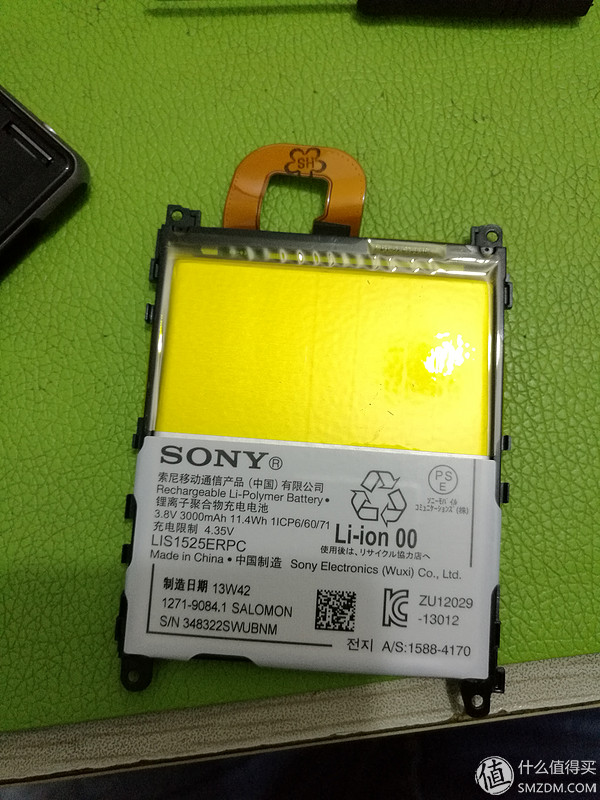

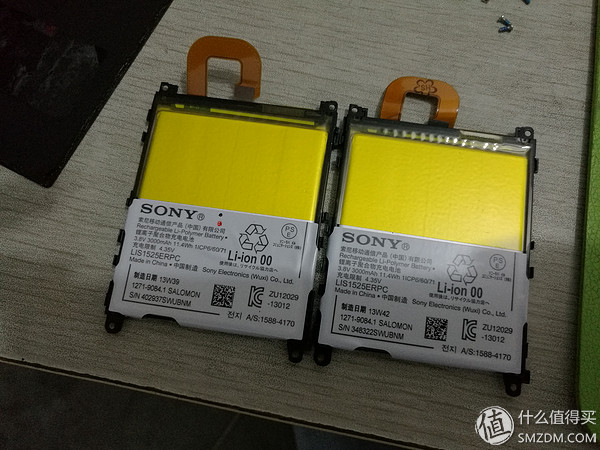

Comparing two batteries, the above printing is the same

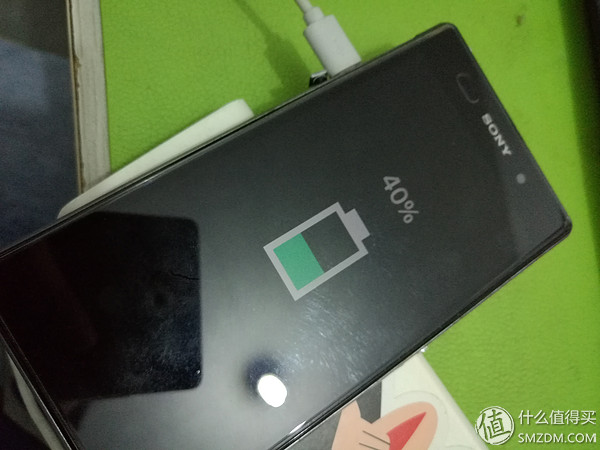

Insert the battery and try charging with a mobile power supply
It can be charged normally, and it can boot. Finally, I was relieved.
Take a few shots

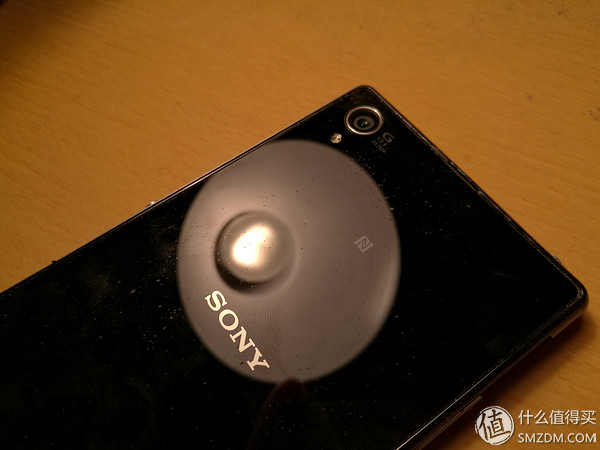

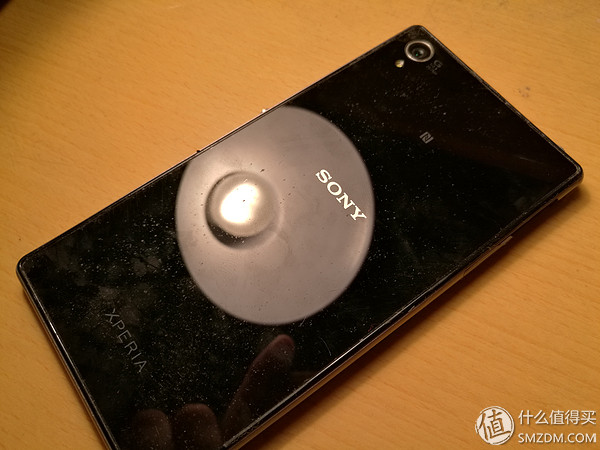

On the back, the back of the glass is as stunning as the Madonna 4 of the year.
There is a G lens that Dafa is proud of, but its own training is not to force

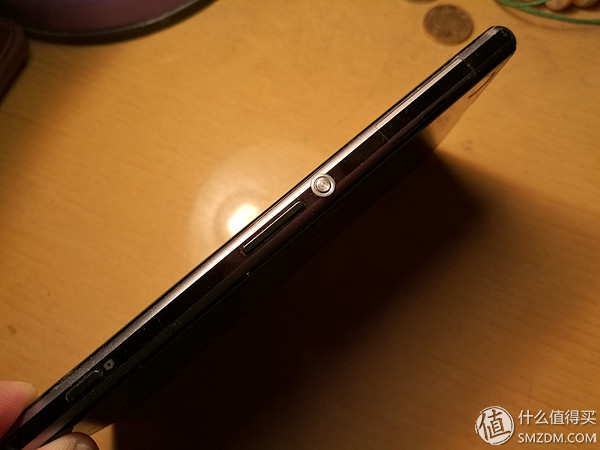

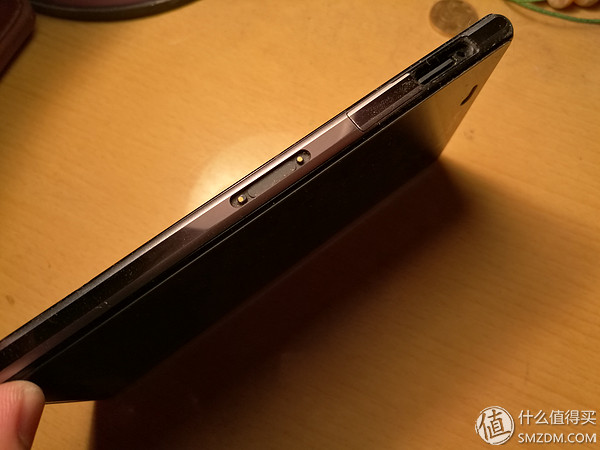

Magnetic charging on the side, also considered a major feature
The power button starting from the Z series is said to have been inspired by high-end watches

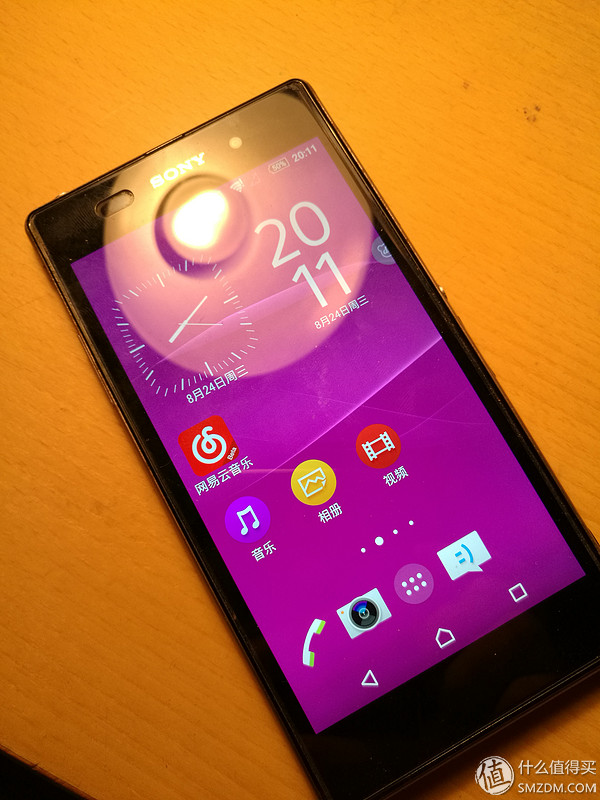

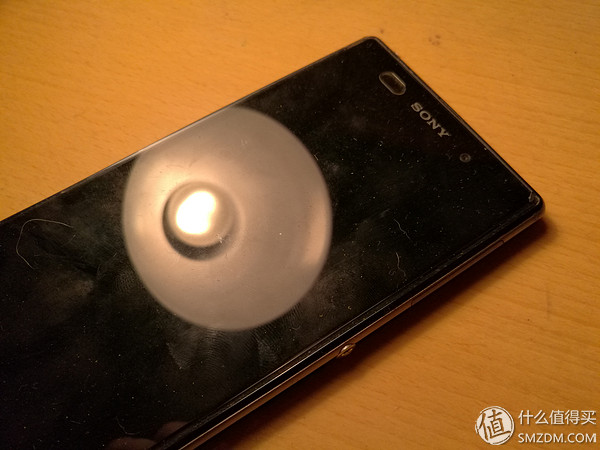

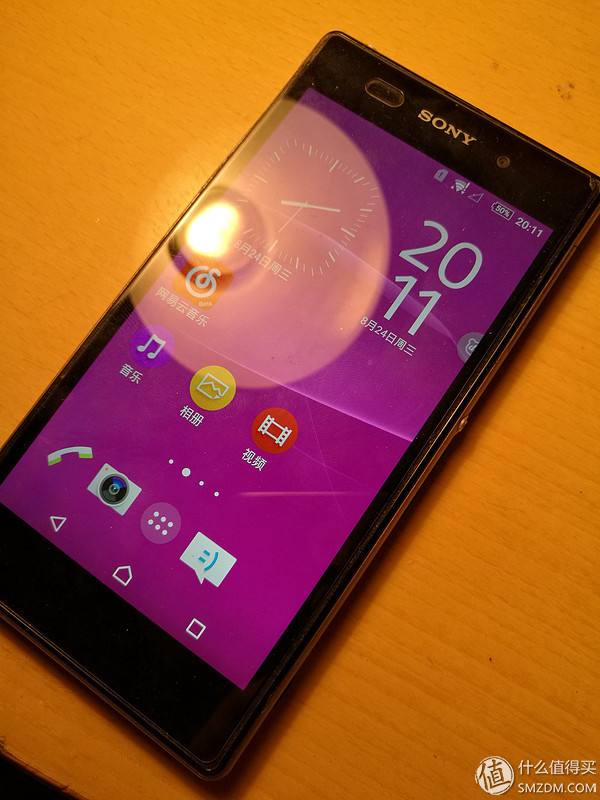

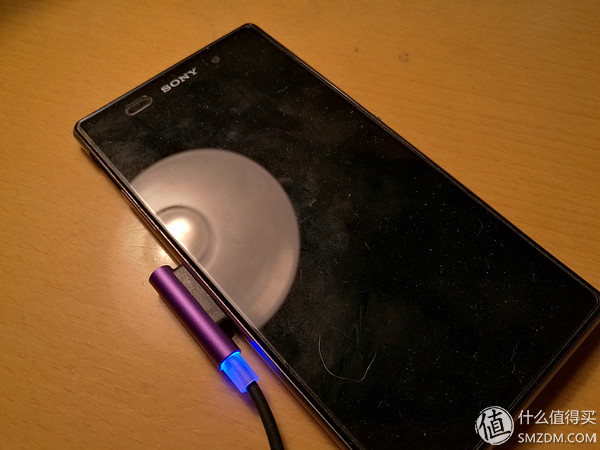

The screens of Dafas are not as stunning as the thick makeup of Samsung, but they are as pure as the neighboring sisters. They make people feel like the breeze.
Received two updates after booting, but did not see any changes after the update.

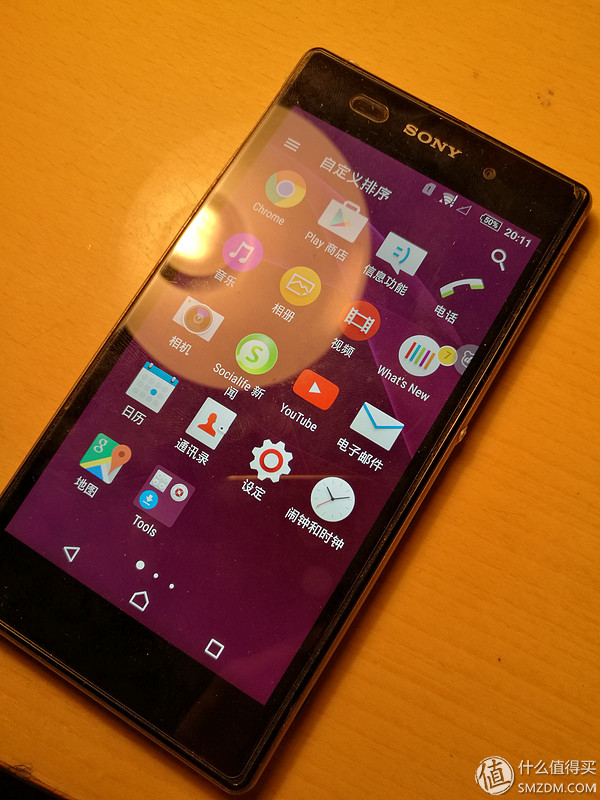

Still retains drawer operation

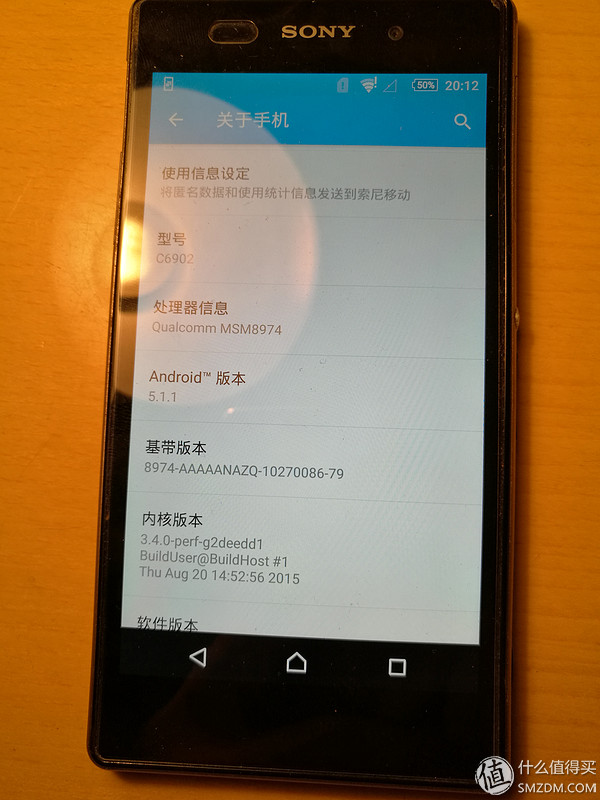

Version 5.1 is also considered to be the conscience of Dafa.

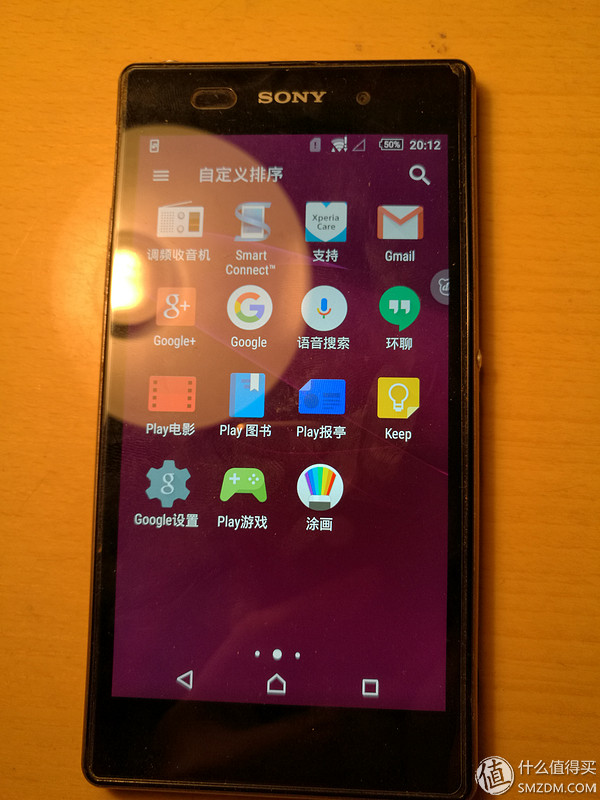

Bring Google service, but I'm not good at it.
After all, it's more than two years old. The configuration is behind now, and the boot memory usage is up to 70%. Some applications are slow to open, so they can only be used to cherish memories of feelings. However, it's fortunate that Dafa is not bankrupt. We expect Dafa to bring us New flagship, new black technology
