At the end of August, on the neon biz trip + vacation, Aunt Zhang's application for a successful SMS message was very happy. She immediately asked her colleague to help with the receipt and kept it in the office. I recently returned to China to get it. This immediately opened the sun. Hard Xiaobian three times five times urging Kazakhstan ~ so sorry
BTW, this is also the first time for the owner to apply for testing products. In the objective and rigorous evaluation, this article will appear more or less Tucao, you self-screening ~ ~
Brief Introduction
Micro smart projector is a new product that has just been born. With the return of Internet intelligent hardware, its appearance may mean that the domestic Internet market has found the next outlet.
The PaPa pocket cinema is a portable smart projector with a palm size of 200g and 450 lumens (nominally “2000 lumens or less†and extremely inconsequential Official Spec), capable of projecting 100 frames, priced at 1,499 yuan, and both More than one hour. The operating system is based on Android 4.4 customization. On the interaction is the use of a traditional infrared remote control, while the body is equipped with touch buttons. These configurations are still more in line with its own positioning, the main portable, as performance and power consumption standby, or weak, after the product needs improvement is still quite a lot of
Out of the box
Open a box first and reveal a face. Then we talk slowly, this small micro-cast.
Shooting equipment for 5D3 and Z5, mixed style, we just look at it.
One day before the military parade, it appeared to be a special care to take a trip.
Opened a box, there are only two boxes, one is the host, the other is a small tripod with a lot of points.
PS, the Pa10 that I got was not a new machine. There were some wear and tear on the packing box and the main body. It was probably the engineering machine that sent the manufacturers to test the various media so that after they got their hands, they began to disinfect... Are all the tested products brand new? !
The family portrait was released several years ago and Mitaka Museum of Art entered TOTORO.

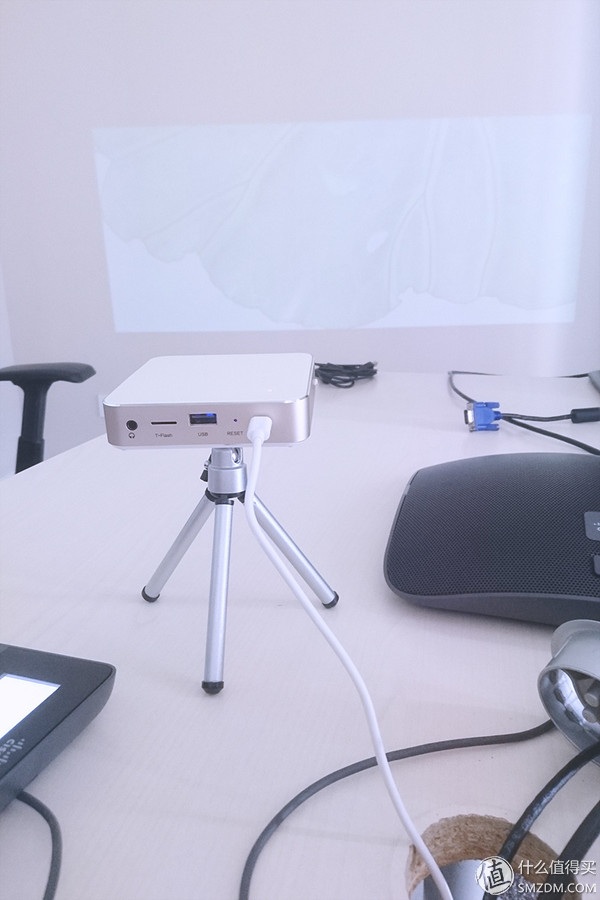

The tripod's workmanship and stability are irritating, and the white Manfrotto PIXI mini stand seems to be more harmonious. It has the following picture
All white lines, watching more harmony.
In actual experience, the height of the Manfrotto PIXI can not be adjusted, and the stability of the tripod in the attachment is not enough, and it is not very convenient. In this way, it is more pro-producing a miniature tripod Manfrotto 209+492. With pan/tilt, it is more convenient to adjust, maximum height: 35.0 cm, load-bearing capacity: 2 kg 200g for Pa10 is easy.
Appearance details & contrast
Let's look at the details. The overall workmanship can only be said to be acceptable , but not exquisite . The host is surrounded by a metal frame that matches the beveled edge of the iphone5. In fact, this can still see the good intentions of design.

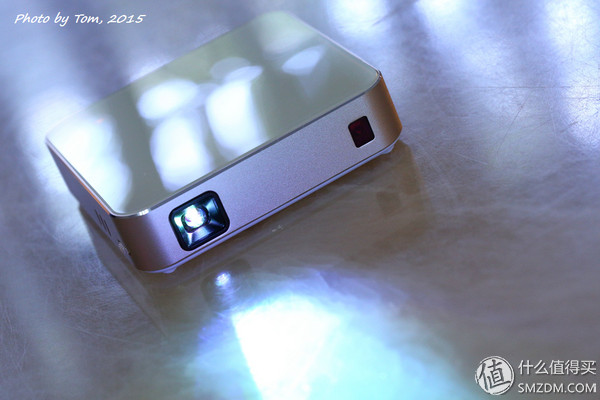

The front is a projection lens and irDa receiver.
Both sides are cooling holes, the use of relatively quiet, play 1080p began to call, winter is a good choice on the bed
On the back of the interface: USB + micro USB (charging + data) + TF card expansion + headphone jack + reset. As a projection, there must be an HDMI or MHL for a smaller one . The screen image can only be used for wifi display, DLNA or airplay, and it is a more power-consuming option in the outdoors. Perhaps the first crowdfunding product of a startup company, the cost of sale must pay special attention.
TF counter-search, gold finger up, pop-up is relatively more troublesome, need to use some strength. In fact, the work of these details is also very important.
There is also a focus adjustment knob on the side, the damping is not very comfortable, slightly inferior. It is important to note that the Pa10 is a fixed focal length, so it is impossible to zoom the image, not to think of lens shift, keystone correction, etc.
On the back is the standard 1/4†interface, and the general tripod can support it.
The size of the official data host ismm. In order to visualize this data, several home owners are compared to each other.

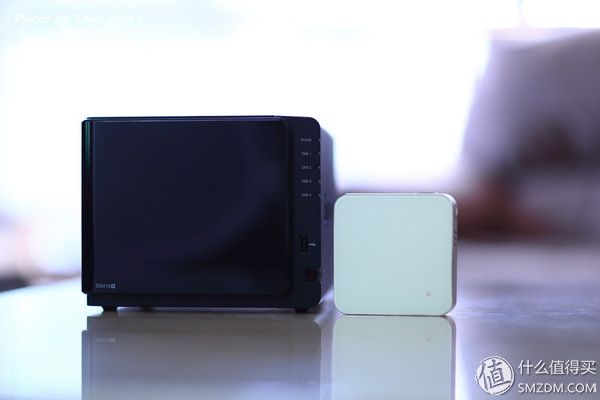

Synology 415+, visual inspection should be able to hold 10 Pa10.
Sony Xperia Z5 Premium
Compared with NUC5i7, it is more petite.
BOSE SoundLink Mini, in fact, these two are perfect match. Mini's portability allows you to go outdoors with it, and the sound quality of Pa10 is greatly improved.撸主 strongly recommend

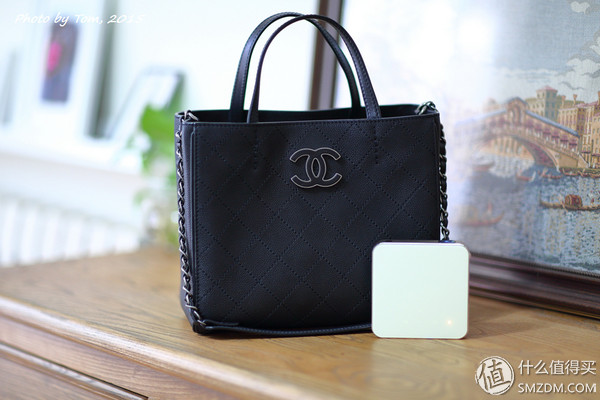

Chanel spring and summer models bought recently by his wife and adults are also compared.
Easy to put inside...
MM played, gave it
Finally, there are some attachments. Let's take a brief look.

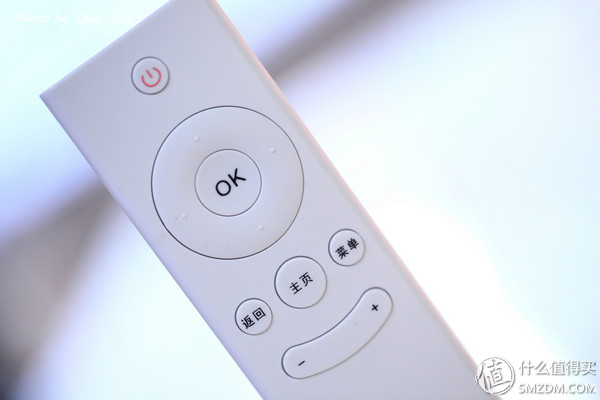

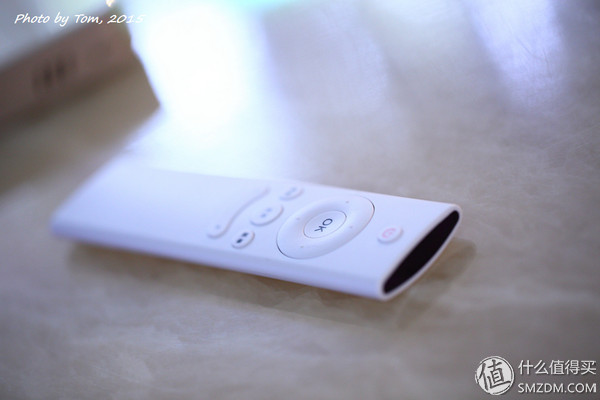

Remote control, plastic texture is serious, very light in his hand. The overall design is similar to Apple TV's remote control (the domestic box basically has this routine). Infrared remote control does not support 2.4Ghz. It is still inconvenient to use it. Infrared directionality is annoying to lazy people. In addition, the buttons are quite cheap, and the touch is very poor... It can't be compared with the Dafa TV at home, but worse than the BOSE 535 II, even worse than the 25RMB NUC HP MCE remote control.
Use a single button cell battery.
The original tripod, loose workmanship, ball head (if any)... this is a cost consideration, or think that buyers will use their own tripod
Charger output 5V 2A, YNQX (formerly Shenzhen Qixin OEM)
The last miniUSB port of the power cord is not locked, which makes it easy to fall off during charging. The length of the line is also very short. In the end I still replaced my Z5 data line with...
Specifications Spec
Install Antutu to see the specific hardware configuration.
ARM processor, Rockchips RK3188 (Ruixin Micro released the first quad-core Cortex-A9 core using 28nm technology in 12 years), and the GPU is Mali-400 MP. Consider the quad-core Qualcomm APQ8064 for the same period of the year.
RAM, 1GB. EMMC 8GB,
The actual resolution WVGA 854480 (this is the biggest flaw, good Lai also come to a 720p it)
Android 4.4.2, Kitkat.
As for the DLP specification, the owner wanted to dismantle the mainframe... Later, after laziness defeated reason, there was no later.
The battery capacity is 300mAh, which is still slightly smaller than the physical strength. Think about my Z5P's 3340mAh battery in an 8mm thick body. Actually using WIFI off, BT on, and playing local 720P MP4 video can reach about 2 hours.
Official spec, self-braining brightness will not be entangled, the following specific experience ...
Experience
Fully charged and fixed on various tripods.
It is also possible to shoot 90° directly on the ceiling.

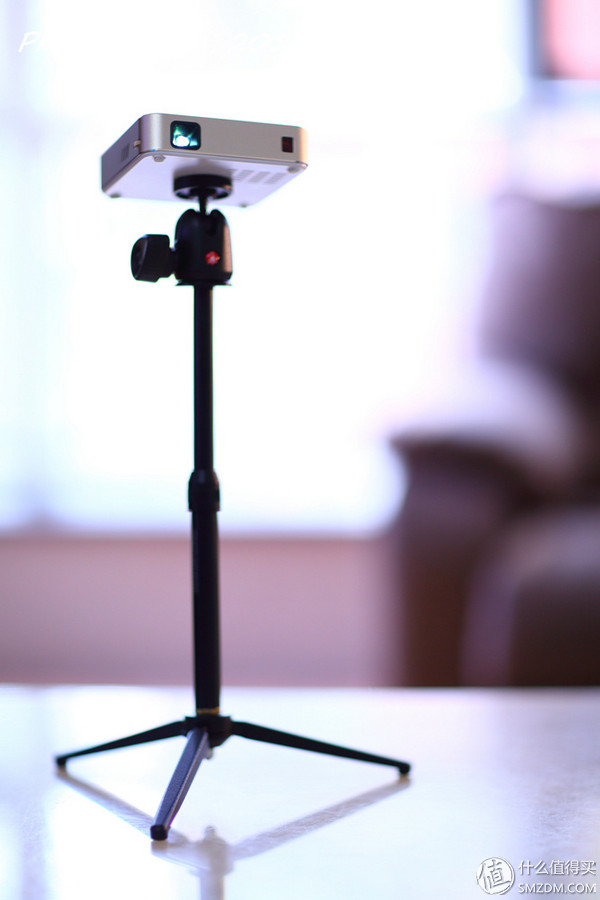

The advantage of this pro some of the tripod is that it can raise the mid-axis. (PS, the main layer is fixed with him 5D3 + handle + rabbit night shooting)
Replace the original factory tripod
Turn off the lights, put on the curtains to feel more, the following are ready to start papa...

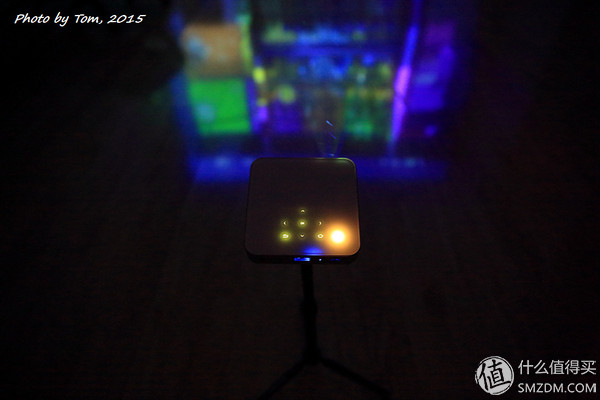

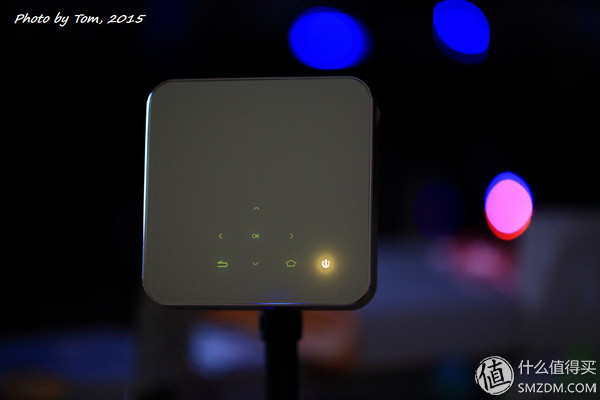

There are several touch buttons on the front of the main unit. The basic one is similar to the remote control. It is more convenient to use. Covers the main Android back, home, memu buttons.
Boot
Foreign sounds, first explain the projection environment. Because the landlord's family finds it difficult to find a large area of ​​white walls, it has to project in the second bedroom. The surrounding environment is around 4 pm, coordinates north of the sky 3, the room window curtains, close the door, there is a faint light, the wall is light yellow wheat color.
Start up , projection distance 2.7M from the wall, cast screen diagonal distance 257cm, equivalent to 100 "screen.
Boot time is slightly longer... 1mins or so
The main interface belongs to the classic Metro UI style, similar to many domestic boxes. The logic is simple and it is easy to get started.
Take a look at settings (adb screenshots), similar to Vanilla Android. In fact, this acoustic interface is not suitable for large screens, especially when the home WIFI password is too complicated.....
Enter the display settings, which have more projection and screen zoom (non-zoom).
You can adjust the projected screen size and ratio. Lens displacement, trapezoid correction God horse do not want to think. Tests of various distortions will not be done, and HIVI Cast will not be released.
In addition, one thing that cannot be ignored is that when the center font is clearly diagonally accurate, the fonts on both sides of the edges begin to appear imaginary. Of course, this and the lens are related to the projection plane, but there may be some problems in the lens correction. However, there is a slight feeling of nitpicking, and the actual video experience will not be obvious.
Video playback
First broadcast a few videos to see the effects and decoding capabilities.
First look at 720p, video at 2Mbps, audio AC3 5.1-channel> Hannibal Season 3.
The overall tone of Hannibal in the American Drama Edition is grayish, and it is more testable for the detailed performance of the projector. For Pa10, whose brightness and contrast are not very high, it is still difficult to see clearly. To a brighter picture, the performance is acceptable. But another important issue is the resolution. WVGA's physical resolution has obviously felt a sense of roughness when we look at the 720p image, especially compared to the Sony 55ES... Of course, the price difference of more than 10 times is still not so demanding. Pa10 now. If your requirements are basically what you can see, then it is still acceptable. If the environment is dark enough, the display effect is still very good.

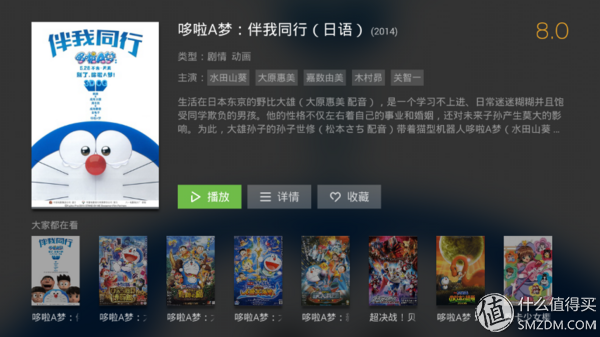

Then look at the 720p cartoon experience, the effect is better than Hannibal, after all, the details will be much less. However, the distance between 2.6 and 2.7m is still somewhat obscure.

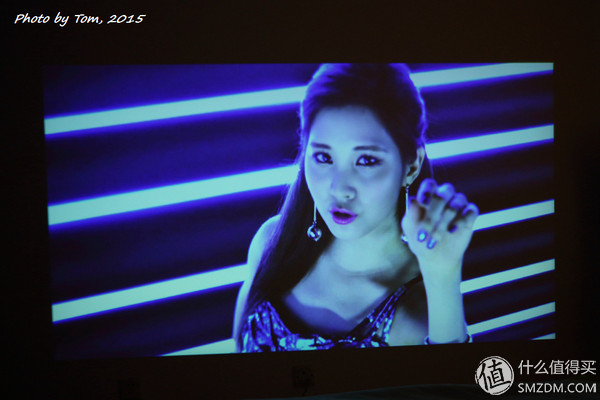

The following benefits have come. 1080p, 24-35Mbps m2ts format video, Girls's Generation - Galaxy Supernova. With its own white player and MX Player playback, fluency is also acceptable, with slight dropped frames and unsynchronized sound and picture.
How can AKB48~~p, code rate 20Mbps, ts package. AKB48 - ã•ã‚ˆãªã‚‰ã‚¯ãƒãƒ¼ãƒ«
After watching the Okinawa Aquarium, it was time to spend a high-dynamic scene on the beach...
Bring your own resources , like boxes, you need to fight resources. Of course, you can also install VST all-in-one, sofa butler and the like.
It is worth mentioning that live TV is good, and the channels are rich and fast. Here are a few screenshots of using adb command.
Men's Basketball Championship! Words just won a few hours ago!
Looking at the new generation of men's basketball that Slam Dunk has grown up with is more passionate than watching the old generation of women's basketball. ! ! Â
Other applications
The white file manager is still very convenient to use. You can find the NAS through your home network. Of course there are some built-in Office software that can be used to demonstrate PPT.
Recommend third-party applications
MX Player, Youku, Sofa Butler, KODI, VST All-Inclusive .... and DS Video
PS, the owner is using adb install to install these Apk, we can also use pea pods and other software. There are also some wireless installations, copying to SD card installation methods, everyone should be familiar with

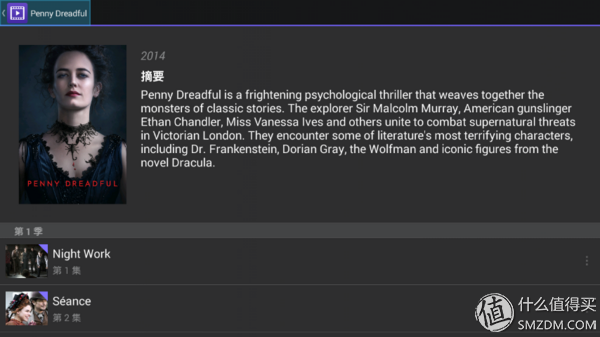

DS Video works with the Synology NAS 415+. It supports scrapers and posters are pretty pretty.
These days use the scene ~~
Office
Home table
Bedroom bunk bed, cast to the roof to see ... The figure is not made

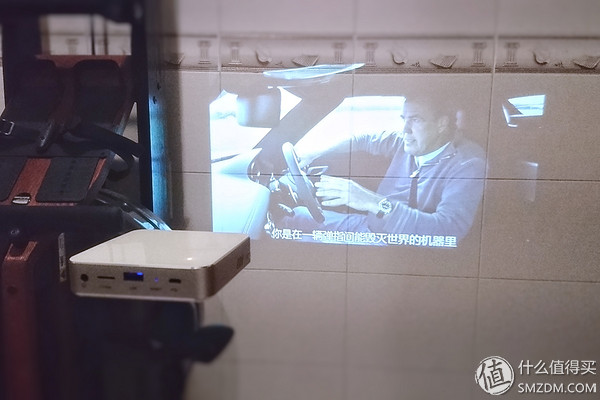

Look Top Gear~~
Summary
Overall, the Pa10 Pocket Theater has a nice look, acceptable workmanship (excl. feet), relatively good performance, and a good source. Satisfy the three major portable scenes of entertainment (video, games), business (presentation), outdoor (travel, picnic, car theater). At present, it should belong to a state that has just started. It should not take long for micro-investors to think of the current box as everywhere. . . After all, it is not too high a threshold from the technical level. It is hoped that manufacturers will bring richer, higher-performance products and more differentiated products.
Pros,
- Portability, truly available everywhere.
- Software stability, automatic shutdown once after more than 1 hour of use, after which the firmware has not been encountered yet. MTBF should be pretty good.
Cons,
- The work still needs to be strengthened, especially the texture of the button on the tripod and remote control
- HDMI Plus is the next generation should bring it
- Battery life, bigger battery, more joy.
- The lens cap still has the necessity of existence
At the end of the day, the review was drunk at the end of the night. Xiao Bian passed the review, the owner sent a travel sticker, is preparing Michelin star trip.
Give a photo of Xiaobian Zhang taken in the last month, express apologies for late homework
