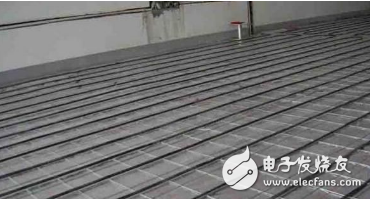

Solar floor radiant heating is referred to as solar floor heating. It is a system that uses collected solar energy as a heat source to heat the ground through coils laid in the floor. It is a combination of solar energy as a heat source and floor heating. As we all know, solar energy is an inexhaustible source of energy. The country is promoting a conservation-oriented society, and energy conservation is the most important topic today. Therefore, solar floor radiant heating has received more and more attention.
The solar hot water floor heating system adopts a combination of temperature difference control cycle, floor heating pipe circulation and electric auxiliary heating, and the system operates fully automatically. No need to take care of it.
Temperature difference control collector cycleIn the solar hot water heating system, there is a collector temperature detector and a water temperature sensor. After the heat collecting system absorbs the solar radiation, the temperature of the heat collecting tube rises. When the temperature of the collector and the temperature difference of the water temperature of the water tank are set to Δt, the detection system The command is given, and the circulating pump inputs the cold water in the central water heater into the collector, and the water is heated and then returned to the water tank, so that the water in the water tank reaches the set temperature. When the temperature difference between the collector temperature and the tank temperature is close to equilibrium, the circulation pump stops, and so on, so that the water temperature in the water tank is continuously increased.
2. Floor heating pipe circulation systemAdd a hot water circulation pump to control the floor heating pipeline circulation through the controller. When the water temperature reaches the set temperature, the floor heating circulating pump is automatically activated, so that the high temperature water is circulated indoors through the floor heating coil, so that the indoor temperature is continuously increased. When the water temperature of the water tank is lower than a certain set value, the floor heating pump is automatically stopped.
Before we understand the working principle of solar floor heating, we need to know what is solar floor heating. Solar floor heating is the abbreviation of solar floor radiant heating. Its main heat source comes from solar energy. Together with gas boiler or heat pump auxiliary heating, it can achieve stable. Warm floor heating. Solar floor heating combines the energy saving of solar energy with the comfort of floor heating, which is a comfortable and energy-saving form of home heating.
Solar floor heating is mainly based on radiation, so that the heat energy provided by the sun can be transmitted to the surface of the object and the human body. If the outdoor temperature is the same, to achieve the same comfort, its ambient air temperature is about 3 °C lower than the convection heating condition. . In principle, there are two main reasons for solar floor heating. The first is the temperature difference control collector cycle. In this solar floor heating system, there is a collector temperature detector and a water temperature sensor. When the heat collecting system absorbs solar radiation, the temperature of the heat collecting tube rises. When the collector temperature and the water temperature of the tank temperature are set to Δt, The detection system issues a command, and the circulation pump inputs the cold water in the central water heater into the collector, and the water is heated and then returned to the water tank, so that the water in the water tank reaches the set temperature. By repeating this, the heat source can be obtained for a long time. The second type is the floor heating pipe circulation system: there is a hot water circulation pump in the floor heating pipe. When the temperature of the water reaches the artificially set temperature, the hot water circulation pump is automatically started, so that the water temperature is warmed in the underground coil by the solar energy floor. cycle. This will achieve the effect of increasing the temperature in the room.
The family chooses to use solar floor heating to heat the solar floor. It is energy consumption and is also an energy production system. Compared with other floor heating systems, the energy saving effect is obvious, and it will not cause any pollution to the environment. obvious. When used, the comfort level is high, and the calorie calculation is also quite satisfactory, meeting the needs of modern people's lives.
However, its production capacity is closely related to solar radiation. In the summer, the water production capacity is strong, while in winter, it is weaker. Therefore, it is necessary to pay attention to this factor. The home solar heating system is still very popular in the current energy-poor society. It has received strong support from the government and will be favored by more families in the future, which will provide better services for people.
