According to Chongqing Huili Xing, lean tubes are usually used in the past. They are divided into wrapped lean tubes, stainless steel lean tubes, and aluminum alloy lean tubes. However, the use of wrapped lean tubes uses materials with a diameter of 28mm, and the specific thickness is 1.0/ 1.2/1.5/2.0, etc., depending on the thickness of the lean tube used for different objects, the general use of 1.0 thickness, the total length of every 4 meters / branch, so it is roughly used for industrial and living materials The shelves should also be cut according to the corresponding size, and then assembled according to the ruler.

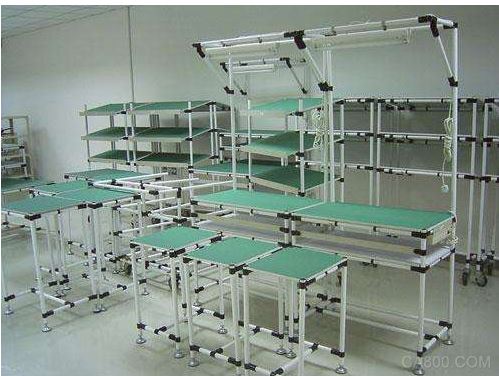

In the industry, it is a piece of cake for industry insiders to build a lean tube workbench. It's probably a matter of assembling an image. However, for the sake of simplicity, how to save material and how to select materials may be insufficient for some people. According to the manufacturer Huili Xing, knowing that building a workbench firstly selects and discharges materials according to the customer's needs and the need for load-bearing, such as the selection of color, material, etc. of the lean tube, followed by the cutting of the size (lean tube). Workbench necessary materials: lean tube, lean tube fittings, foot cup/caster, tooling plate/anti-static rubber) etc. The above is the relevant content introduced by Xiao Bian.
Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors, mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic adaptor types used to connect different kinds of fiber optic connectors. YLTelecom`s fiber adapter provide reliable solution for fiber connections, single mode fiber optic adaptors and multimode fiber optic adaptors available on request. We adopt high quality raw materials and make these fiber optic adapters strictly according to international standard, this makes our fiber optic adaptors with high performance.
Fiber Optic Adapters FC, SC, ST, LC, MT-RJ, MU, E2000, FC/APC, SC/APC, LC/APC, E2000/APC, Simplex, Duplex, Quad, mating sleeves, hybrid fiber optic adapters, Single mode fiber optic adapters, multimode fiber optic adapters are all available.
Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).
Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).
When connecting two multimode fibers, you should always make sure they are the same core diameter (50/125 or 62.5/125). A mismatch here will cause attenuation in one direction (where the larger fiber is transmitting light into the smaller fiber).
Fiber optic adapters are typically connecting cables with similiar connectors (SC to SC, LC to LC, etc.). Some adapters, called "hybrid", accept different types of connectors (ST to SC, LC to SC, etc.). When the connectors have differing ferrule sizes (1.25mm to 2.5mm), as found in LC to SC adapters, the adapters are significantly more expensive because of a more complicated design/manufacturing process.
Fiber Optic Adapter, Fiber Optic Cable Adapter, SC Fiber Optic Adapter, ST Fiber Optic Adapter, FC Fiber Optic Adapter
