Cypress's EZ-PDTM CCG2 is a USB type-c controller that complies with the latest USB type-c and PD standards. The EZ-PD CCG2 provides a complete USB type-c and USB powered port control solution for passive cables, active cables and power accessories. The EZ-PDCCG2 uses Cypress's dedicated M0S8 technology, which uses 32-bit 48 MHz ARM® Cortex®-M0 processor with 32 KB of flash; this processor integrates a complete Type-C transceiver including RP, RD and RAtype-c resistors. Mainly used in USB Type-C type EMCA cable, power supply accessories, upstream port and downstream port. This article introduces the main features of EZ-PDTM CCG2, logic block diagram, functional block diagram and USB-PD subsystem block diagram, CCG2 60W car charger reference design file, circuit diagram and bill of materials.
EZ-PDTM CCG2 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. EZ-PD CCG2 provides a complete USB Type-C and USB Power Delivery port control soluTIon for passive cables, acTIve cables, and Itcan also be used in many upstream and downstream facing port applicaTIons.EZ-PD CCG2 uses Cypress's proprietary M0S8technology with a 32-bit, 48-MHz ARM® Cortex®-M0 processor with 32-KB flash and integrates a complete Type -C Transceiver includes the Type-C terminaTIon resistors RP, RD and RA.
Key features of EZ-PDTM CCG2:
32-bit MCU Subsystem
â– 48-MHz ARM Cortex-M0 CPU
â– 32-KB Flash
â– 4-KB SRAM
â– In-system reprogrammable
Integrated Digital Blocks
â– Integrated timers and counters to meet response timesrequired by the USB-PD protocol
â– Run-time reconfigurable serial communication block (SCB) with reconfigurable I2C, SPI, or UART functionality
Clocks and Oscillators
â– Integrated oscillator eliminate the need for external clock
Type-C Support
â– Integrated transceiver (baseband PHY)
â– Integrated UFP (RD), EMCA (RA) termination resistors, and current sources for DFP (RP)
â– Supports one USB Type-C port
Low-Power Operation
â– 2.7-V to 5.5-V operation
â– Two independent VCONN rails with integrated isolationbetween the two
â– Independent supply voltage pin for GPIO that allows 1.71-V to5.5-V signaling on the I/Os
■Reset: 1.0 μA, Deep Sleep: 2.5 μA, Sleep: 2.0 mA
System-Level ESD on CC and VCONN Pins
■± 8-kV Contact Discharge and ±15-kV Air Gap Discharge basedon IEC61000-4-2 level 4C
Packages
■1.63 mm × 2.03 mm, 20-ball wafer-level CSP (WLCSP) with0.4-mm ball pitch
■2.5 mm × 3.5 mm × 0.6 mm 14-pin DFN
■4.0 mm × 4.0 mm, 0.55 mm 24-pin QFN
■Supports industrial (40°C to +85°C) and extended industrial (40°C to +105°C)
EZ-PDTM CCG2 application:
â– USB Type-C EMCA cables
â– USB Type-C powered accessories
â– USB Type-C upstream facing ports
â– USB Type-C downstream facing ports
Figure 1. EZ-PDTM CCG2 logic block diagram

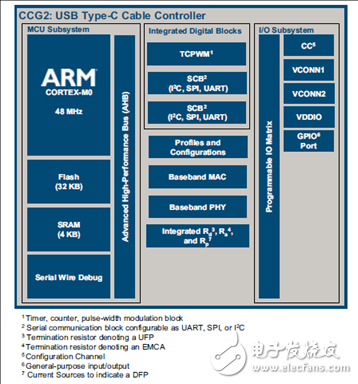

Figure 2. EZ-PDTM CCG2 Block Diagram
Figure 3. EZ-PDTM CCG2 USB-PD Subsystem Block Diagram
CCG2 60W Car Charger Reference Design
The CCG2 60W Car Charger Reference Design Board is a receptacle based USB-C Charger with USB PD 2.0 and QC 3.0 (Class –A and Class –B) support. In the PD mode, it supports 5V@3A, 7V@3A, 8V @3A, 9V@3A, 12V@3A, 15V@3A and 20V@3A output. The board can be programmed to support any output voltage between 0 to 20V with 100mV resolution. It is designed to work with standard Car Lighter Attachment (CLA It works with any DC input between 4V to 24V.
The two major components on the board are Cypress's EZ-PD CCG2 (CYPD2134-24LQXIT) controller and On Semiconductor's NCP81239 DC-DC Buck-Boost controller.
Figure 4. CCG2 60W car charger reference design outline drawing
The CCG2 device handles USB Type-C interface, Power Delivery (PD) 2.0, QC 3.0, Cable compensation and primary Over Current Protection (OCP). The buck-boost conversion, Over Current Protection (OCP) and Over Voltage Protection (OVP) The board hardware design files (schematic, bill of materials, layout etc) are readily available below for customers to reduce the design cycle.

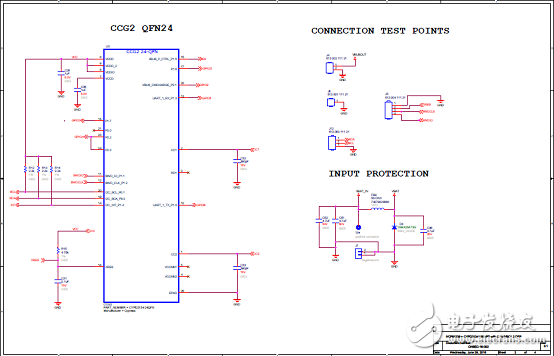

Figure 5. CCG2 60W car charger reference design circuit diagram (1)
Figure 6. CCG2 60W car charger reference design circuit diagram (2)
Figure 7. CCG2 60W Car Charger Reference Design Circuit Diagram (3)

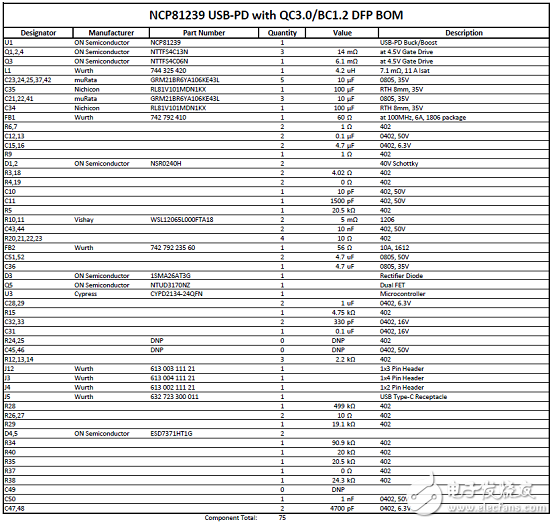

CCG2 60W car charger reference design material list:
CCG2 60W car charger reference design documents can be found at:
