The control method of the intelligent LED color light dimming color adjustment based on the Bluetooth module is as follows :

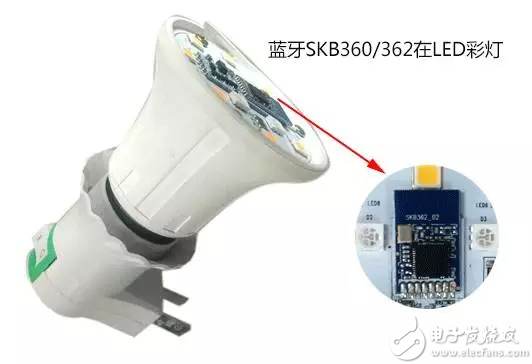

Here, find a low-power Bluetooth module with a control circuit board embedded in the LED light and connect it to the control circuit of the LED lantern.
Â
Details of the Bluetooth Lantern Control Scheme are as follows:

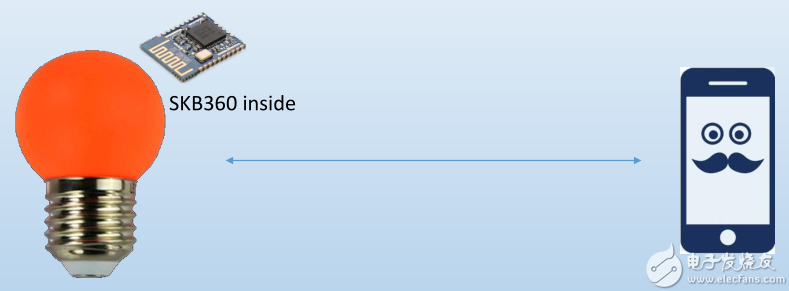

The first category: 1 mobile phone control 1 LED lantern, can realize 3 kinds of control methods

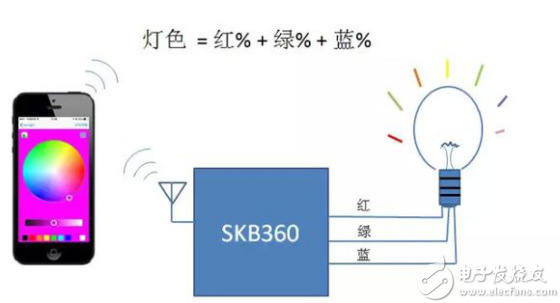

The first type, the finger slides on the lantern control panel on the mobile phone APP to directly control the color, brightness, etc. of the LED .

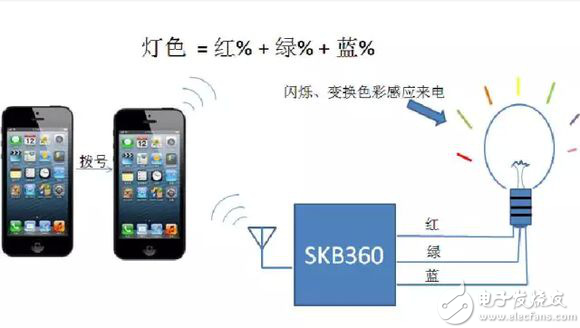

The second type, the mobile phone receives the incoming call can also achieve the change of the sensor light color.

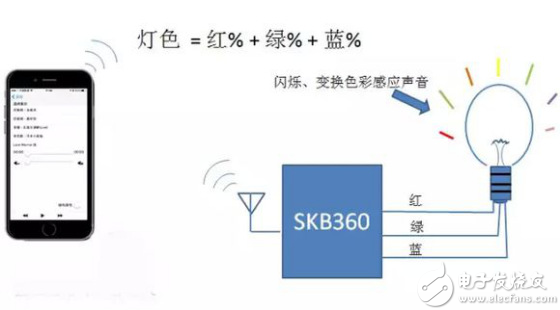

The third type, the sound sensor light color.
When you play music on your mobile phone, especially when the rhythm is particularly strong, the LED lights will change color, brightness, etc. as the rhythm changes! Especially suitable for lantern control in entertainment venues.

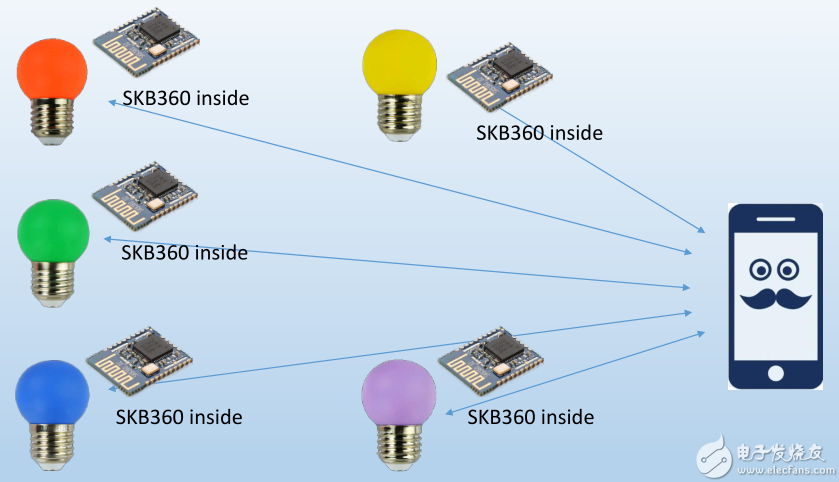

The second category: 1 mobile phone controls multiple LED lights
The functions that can be tested are as follows:
( 1 ) Password setting: password setting can be performed for single or multiple lights;
( 2 ) Brightness setting: brightness setting can be performed for single or multiple lamps;
( 3 ) Color setting: color setting can be performed for single or multiple lamps;
( 4 ) Scene setting: scene setting can be performed on multiple lights;
( 5 ) Timing setting: Time switch setting can be performed.
